Product Details

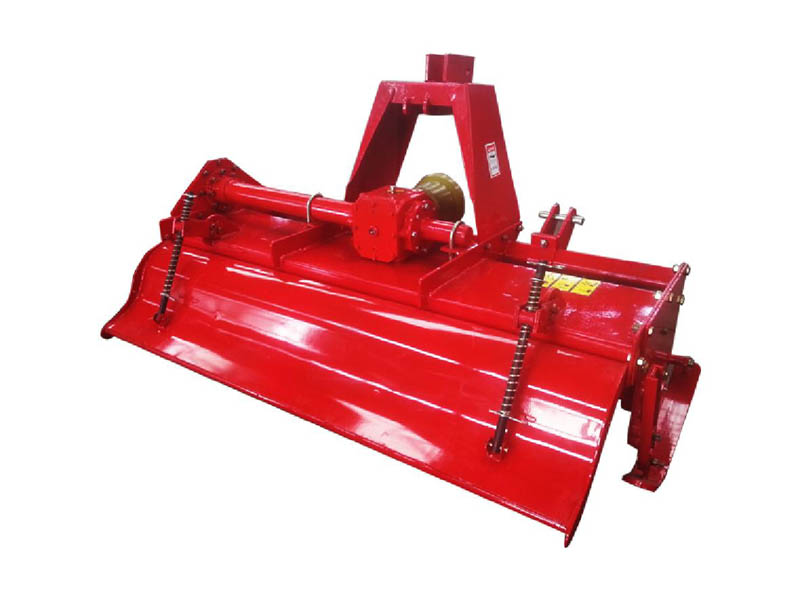

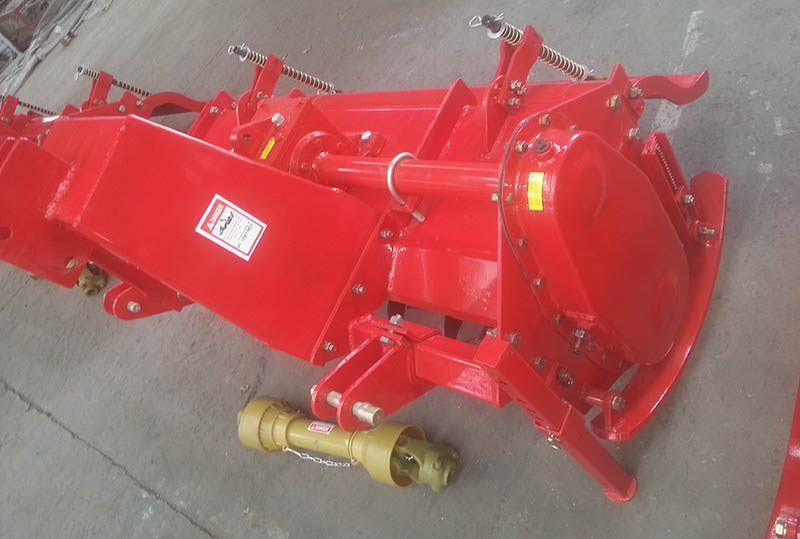

1GLN series European rotary tiller
1GLN series European rotary tiller with side gear transmission. 1GLN series rotary tiller with side gear transmission, it can be mounted with the tractor 12-100 hp. We can’t see the wheel tracks on the soil after it worked. The quality of the rotary tiller is good and the function very well. It is suited to dry land and paddy field. It can save time, labor and money etc. strong point.
| Models | Unit | 1GLN-85 | 1GLN-105 | 1GLN-125 | 1GLN-135 | 1GLN-150 | 1GLN-160 | 1GLN-165 | 1GLN-180 | 1GLN-200 | 1GLN-210 | 1GLN-220 | 1GLN-230 | 1GLN-240 |
| Matched power | hp | 12-20 | 20-30 | 25-35 | 30-40 | 30-45 | 40-50 | 50-80 | 50-80 | 55-85 | 60-85 | 65-85 | 70-90 | 75-90 |
| Working width | mm | 850 | 1045 | 1245 | 1345 | 1495 | 1595 | 1645 | 1750 | 1950 | 2050 | 2150 | 2250 | 2350 |
| Working depth | mm | 120 | 120-160 | |||||||||||
| No. of disc | PCS | 24 | 24 | 30 | 30 | 36 | 42 | 42 | 42 | 48 | 48 | 54 | 54 | 60 |
| PTO Input speed | (r/min) | 540 | ||||||||||||
| Total weight | Kg | 245 | 264 | 285 | 300 | 320 | 340 | 560 | 600 | 620 | 640 | 660 | 680 | 700 |
| Linkage | Standard three point mounted | |||||||||||||
