Product Details

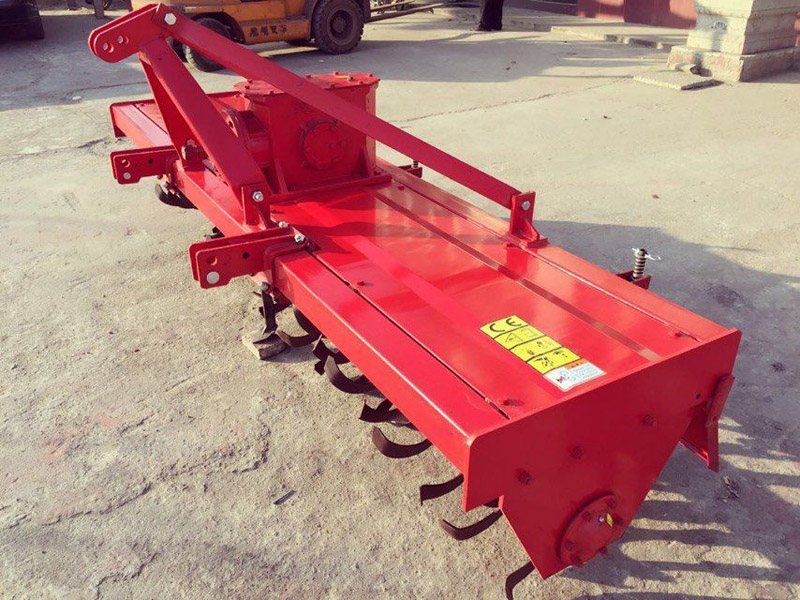

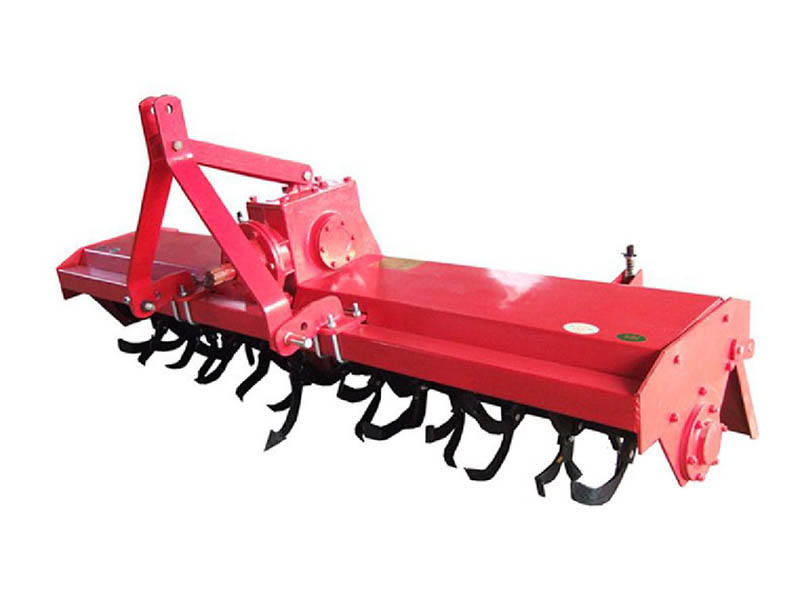

1GQN series rotary tiller
1GQN series rotary tiller with middle gear transmission, it can be mounted with the tractor 15-160hp. We can’t see the wheel tracks on the soil after it worked. The quality of the rotary tiller is good and the function very well. It is suited to dry land and paddy field. It can save time, labor and money etc.
| Models | Unit | 1GQN-80 | 1GQN-100 | 1GQN-120 | 1GQN-140 | 1GQN-150 | 1GQN-180 | 1GQN-200 | 1GQN-250 | 1GQN-300 | 1GQN-350 | 1GQN-400 |
| Matched power | hp | 15-20 | 18-22 | 20-25 | 25-30 | 25-30 | 50-60 | 55-75 | 75-80 | 90-120 | 125-150 | 140-160 |
| Working width | mm | 700 | 900 | 1100 | 1300 | 1400 | 1650 | 1850 | 2350 | 2850 | 3350 | 3850 |
| Working depth | mm | 10-18 | 10-18 | 10-18 | 10-18 | 10-18 | 12-20 | 12-20 | 12-20 | 12-20 | 12-20 | 12-20 |
| No. of disc | PCS | 18 | 18 | 22 | 30 | 34 | 42 | 46 | 58 | 70 | 82 | 94 |
| Total weight | kg | 175 | 180 | 190 | 200 | 210 | 350 | 380 | 400 | 600 | 870 | 940 |
