Farm Implement

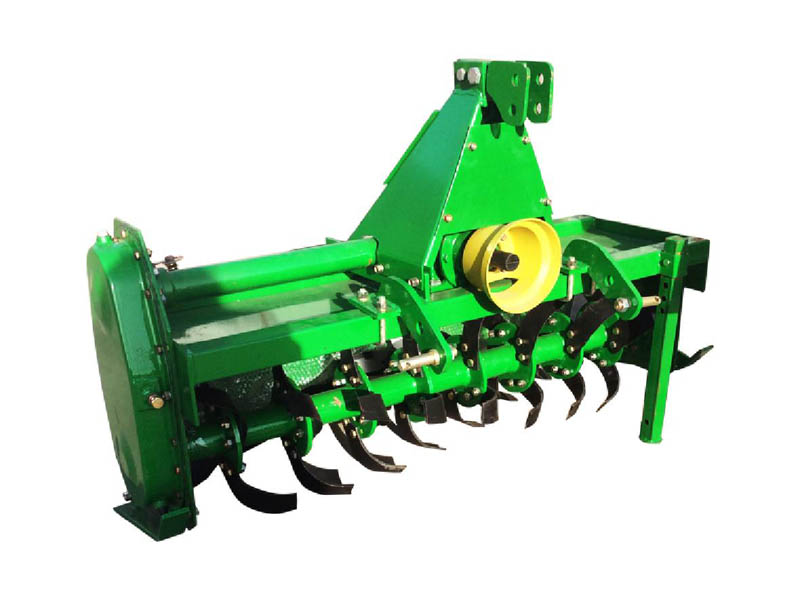

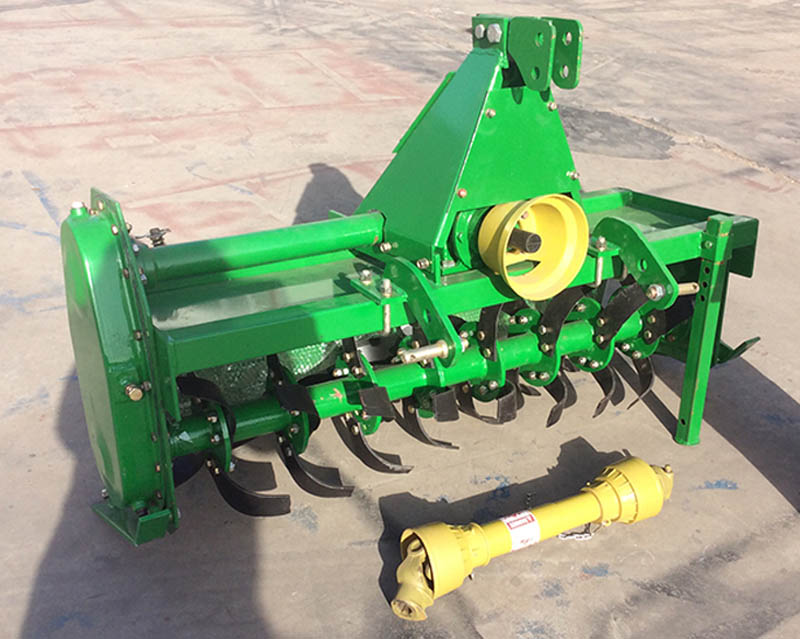

1GLN series European rotary tiller

1GLN series European rotary tiller with side gear transmission. 1GLN series rotary tiller with side gear transmission, it can be mounted with the tractor 12-100 hp. We can’t see the wheel tracks on the soil after it worked.
Product Details

1GLN series European rotary tiller

Rotary Cultivator Rotary Cultivator

1GLN series European rotary tiller with side gear transmission. 1GLN series rotary tiller with side gear transmission, it can be mounted with the tractor 12-100 hp. We can’t see the wheel tracks on the soil after it worked. The quality of the rotary tiller is good and the function very well. It is suited to dry land and paddy field. It can save time, labor and money etc. strong point.

Models Unit 1GLN-85 1GLN-105 1GLN-125 1GLN-135 1GLN-150 1GLN-160 1GLN-165 1GLN-180 1GLN-200 1GLN-210 1GLN-220 1GLN-230 1GLN-240
Matched power hp 12-20 20-30 25-35 30-40 30-45 40-50 50-80 50-80 55-85 60-85 65-85 70-90 75-90
Working width mm 850 1045 1245 1345 1495 1595 1645 1750 1950 2050 2150 2250 2350
Working depth mm 120 120-160
No. of disc PCS 24 24 30 30 36 42 42 42 48 48 54 54 60
PTO Input speed (r/min) 540
Total weight Kg 245 264 285 300 320 340 560 600 620 640 660 680 700
Linkage Standard three point mounted
