Farm Implement

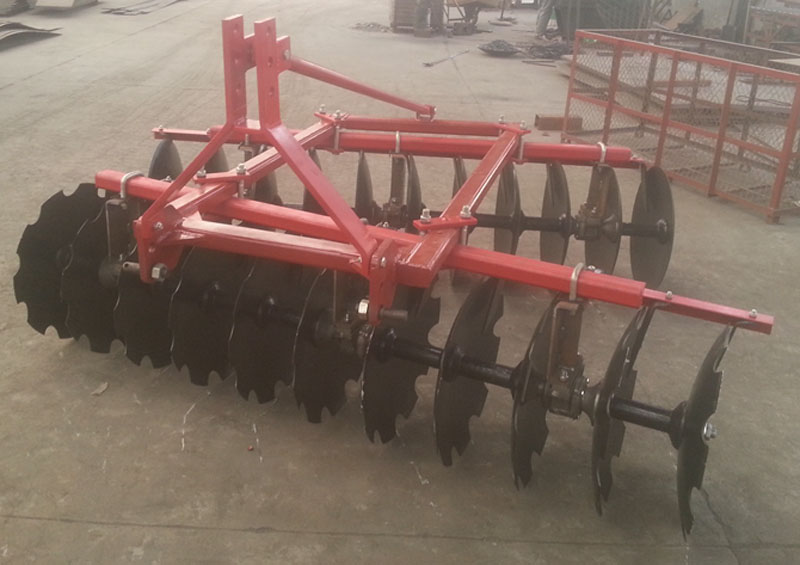

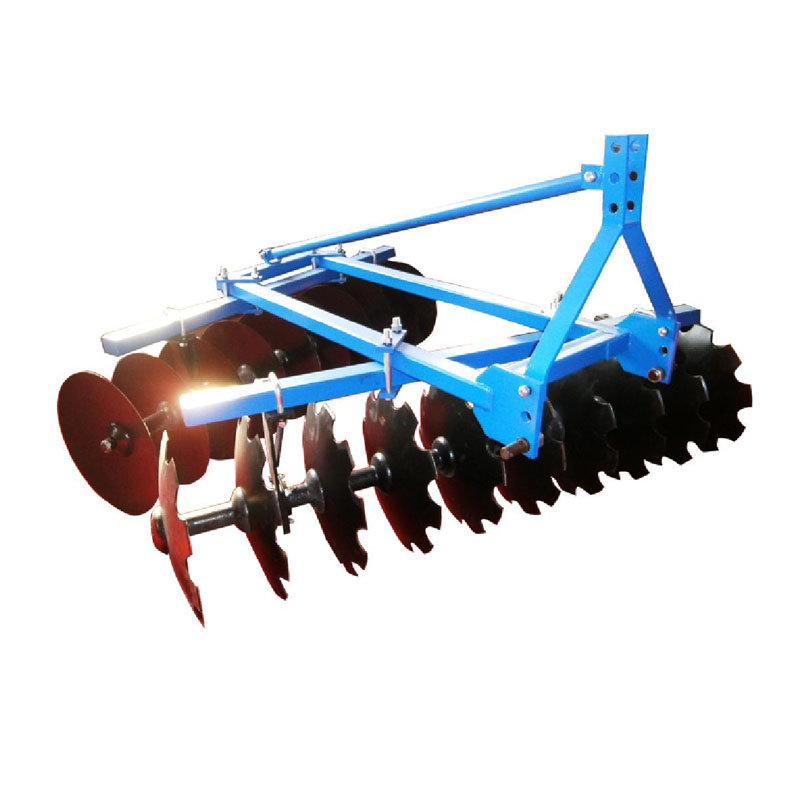

1BJX Mounted Middle-duty Disc Harrow

1BJX series hanging middle harrow : it is used for crushing clods after tillage ,seedbed preparation , loosening the soil , mixing soil and fertilizer before saving , and cleaning away stubble of plants in light soil field .With reasonable structure, strong ability to rake, durable, easy to use and maintenance ,etc.
Product Details

1BJX Mounted Middle-duty Disc Harrow

1BJX Mounted Middle-duty Disc Harrow 1BJX Mounted Middle-duty Disc Harrow

1BJX series hanging middle harrow : it is used for crushing clods after tillage ,seedbed preparation , loosening the soil , mixing soil and fertilizer before saving , and cleaning away stubble of plants in light soil field .With reasonable structure, strong ability to rake, durable, easy to use and maintenance ,etc.

Model 1BJX-1.4 1BJX-1.6 1BJX-1.8 1BJX-2.0 1BJX-2.2 1BJX-2.4 1BJX-2.5
Working width(mm) 1400 1600 1800 2000 2200 2400 2500
Working depth(mm) 140-160
Diameter of disc 560mm / 22’’
Thickness of disc(mm) 4
No. Of disc(pcs) 12 14 16 18 20 22 24
Weight 330 370 400 440 463 520 760
Matched power 35-40 40-45 45 50 55-60 65 75
Linkage Three-pointed mounted with tractor
