Farm Implement

1BJ Mounted Middle-duty Disc Harrow

1 BJ series folding wings in hydraulic pressure offset middle harrow: it is used for crushing clods after tillage in sticky heavy fields, the plough up, the scarification before seeding and cleaning away stubble of plants before tillage in the light soils,
Product Details

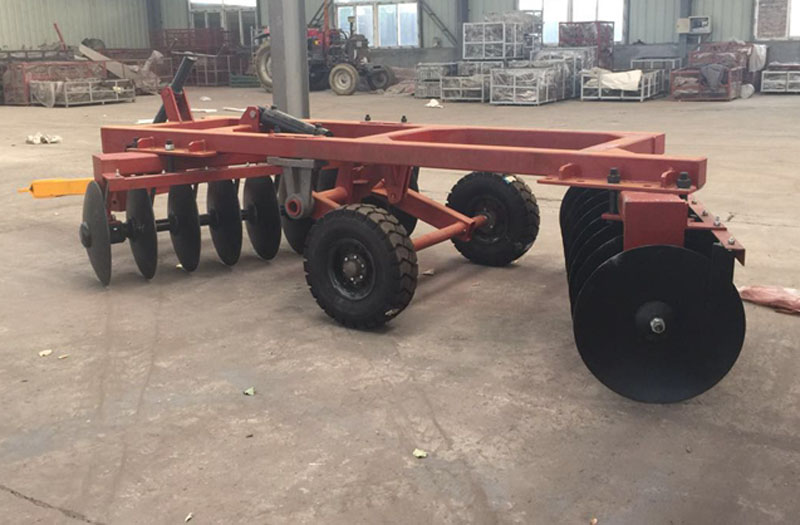

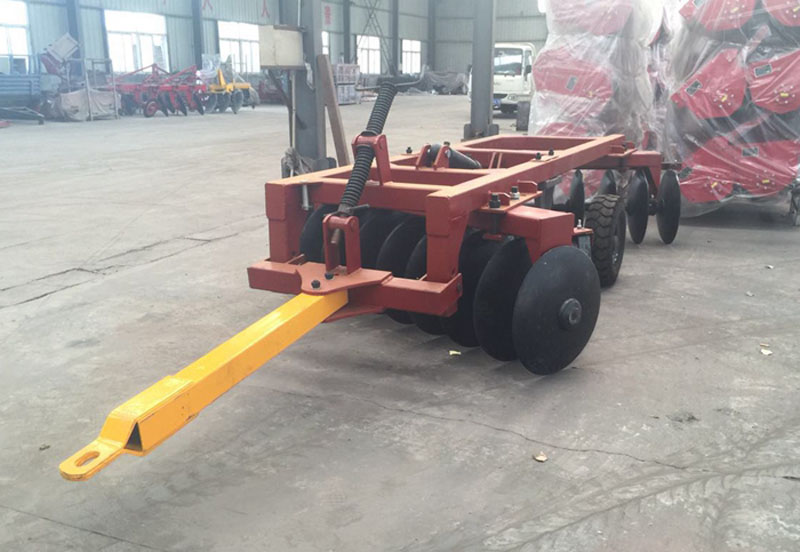

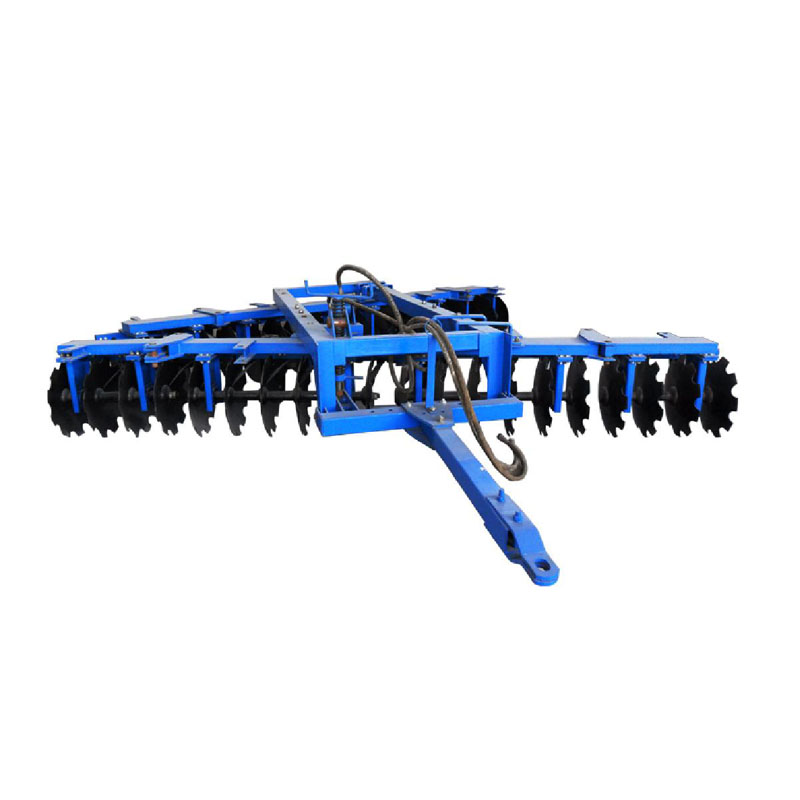

1BJ Mounted Middle-duty Disc Harrow

1BJ Mounted Middle-duty Disc Harrow 1BJ Mounted Middle-duty Disc Harrow 1BJ Mounted Middle-duty Disc Harrow

1 BJ series folding wings in hydraulic pressure offset middle harrow: it is used for crushing clods after tillage in sticky heavy fields, the plough up, the scarification before seeding and cleaning away stubble of plants before tillage in the light soils, This harrow is featured by reasonable structure ,high working efficiency,strong capability into the soil and scarification, horizontal hinge, wide width task and narrow width transportation.

Model 1BJ-2.0 1BJX-4.4 1BJX-4.8 1BJX-5.3 1BJX-6.0
Working width(mm) 2000 4400 4800 5300 6000
Working depth(mm) 160-180
Diameter of disc 560mm / 22’’
Thickness of disc(mm) 4
No. Of disc(pcs) 18 40 44 48 56
Weight 860 1850 1950 2300 2600
Matched power 45-65 75-100 100-120 140-150 140-160
Linkage Three-pointed mounted with tractor
