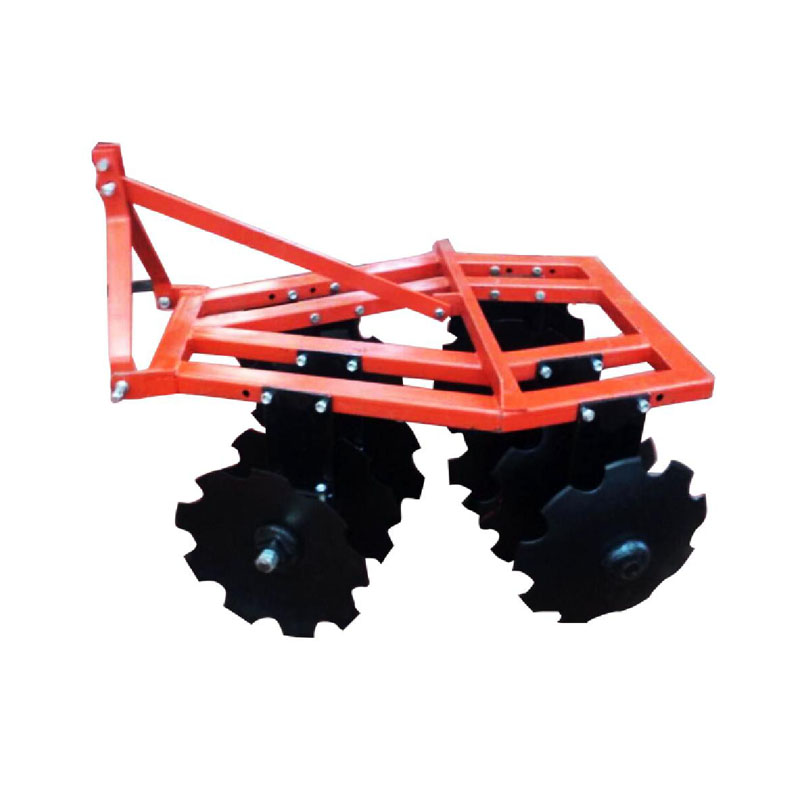

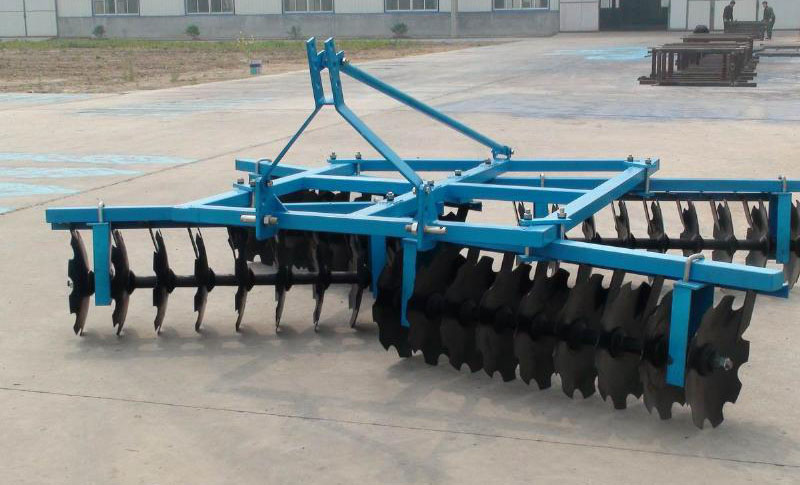

1BJDX Mounted Opposed Middle-duty Disc Harrow

This series harrow used for crushing clods after tillage,seedbed preparation, loosening the soil, mixing soil and fertilizer before saving,and cleaning away stubble of plants in light soil field
Product Details

1BJDX Mounted Opposed Middle-duty Disc Harrow

1BJDX Mounted Opposed Middle-duty Disc Harrow 1BJDX Mounted Opposed Middle-duty Disc Harrow

This series harrow used for crushing clods after tillage,seedbed preparation, loosening the soil, mixing soil and fertilizer before saving,and cleaning away stubble of plants in light soil field.
With reasonable structure, strong ability to rake, durable, easy to use.

Model 1BJDX-2.6 1BJDX-3.0 1BJDX-3.6 1BJDX-4.0
Working width(mm) 2600 3000 3600 4000
Working depth(mm) 140-160
Diameter of disc 560mm / 22inch
Thickness of disc(mm) 4
No. Of disc(pcs) 24 28 32 36
Weight(kg) 590 660 730 800
Matched power(hp) 55-60 60-75 75-85 80-90
Linkage Three-pointed mounted with tractor
