Product Details

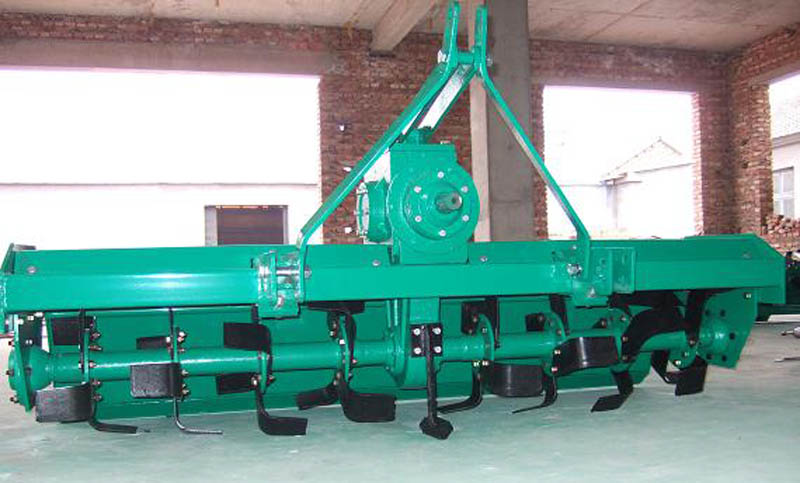

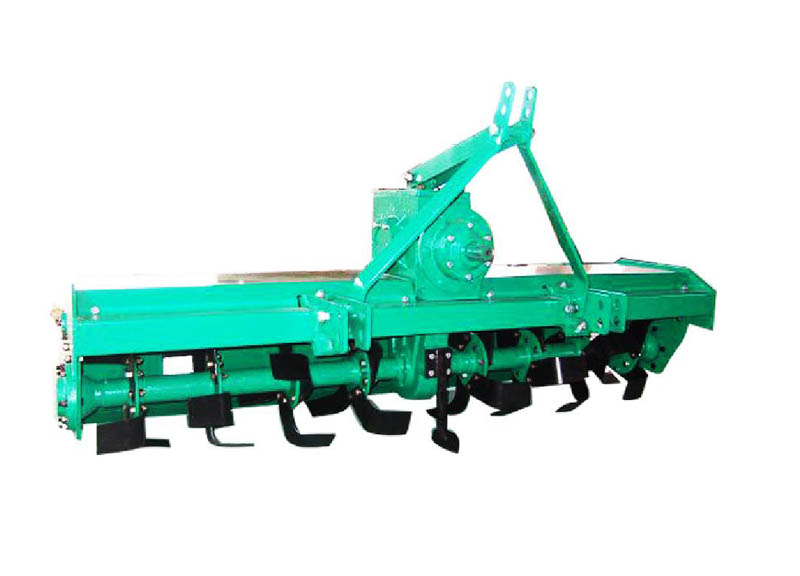

SGTN series rotary tiller
SGTN series rotary tiller is adopted middle gear transmission system, mounted with the tractor of 12-80HP. Tractor wheel tracks are completely covered after tillage as the working width is much wider. The quality is reliable and the performance is well. So it can be used on dry and paddy field. It can reduce the time, laboring, and cost, etc. during operation.
| Models | Unit |
SGTN-80D |
SGTN-100D | SGTN-120D | SGTN-125D | SGTN-140D | SGTN-150D | SGTN-160D | SGTN-180D | SGTN-200D | SGTN-220D | SGTN-250D | SGTN-300 | SGN-350 | SGN-400 |
| Matched power | hp | 18-20 | 18-22 | 20-25 | 20-25 | 25-30 | 25-30 | 30-40 | 50-60 | 55-75 | 60-80 | 75-80 | 90-120 | 130-160 | 140-160 |
| Working width | cm | 70 | 90 | 110 | 115 | 130 | 140 | 150 | 170 | 185 | 205 | 240 | 285 | 335 | 385 |
| Working depth | cm | 8-16 | 8-16 | 8-16 | 8-16 | 8-16 | 8-16 | 8-16 | 8-16 | 8-16 | 8-16 | 8-16 | 8-16 | 8-16 | 8-16 |
| No. of disc | PCS | 16 | 16 | 24 | 24 | 24 | 24 | 24 | 32 | 32 | 40 | 40 | 56 | 72 | 88 |
| Type of knife | SGTN-L | SGTN-L | SGTN-L | SGTN-L | SGTN-L | SGTN-L | SGTN-L | SGTN-L | SGTN-L | SGTN-L | SGTN-L | SGTN-L | SGTN-L | SGTN-L | |
| Total weight | kg | 190 | 195 | 200 | 205 | 210 | 215 | 240 | 365 | 400 | 420 | 460 | 630 | 905 | 940 |
| O.D. m | (L*W*H) | 0.85*0.7*0.7 | 1.05*0.7*0.7 | 1.25*0.7*0.7 | 1.3*0.7*0.7 | 1.45*0.7*0.7 | 1.55*0.7*0.7 | 0.65*0.8*0.8 | 0.9*0.8*0.8 | 2.1*0.8*0.8 | 2.303*0.8*0.8 | 2.6*0.8*0.8 | 3.1*0.9*0.9 | 3.6*0.95*0.95 | 4.1*0.95*0.95 |
