1BZD Hydraulic trailed opposed heavy-duty harrow

1BZD series hydraulic pressure heavy duty harrow are used for breaking up the soil and loosening of wasteland , shrub swamp ,heavy soil .It can rake the land instead of plough .
Product Details

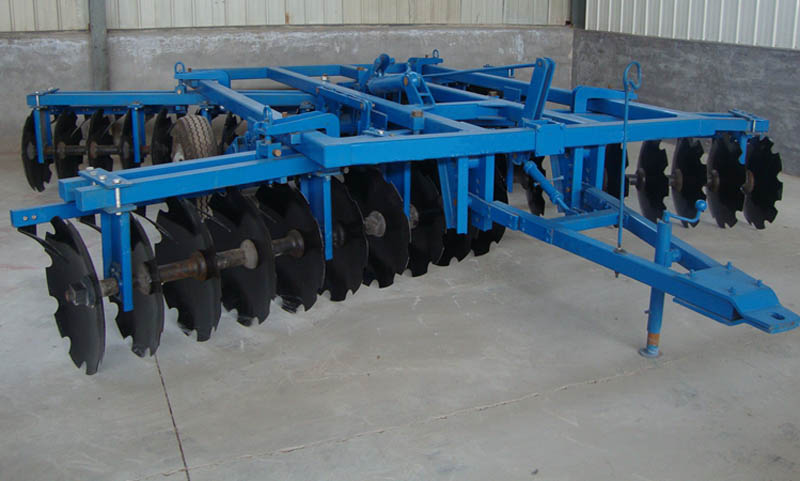

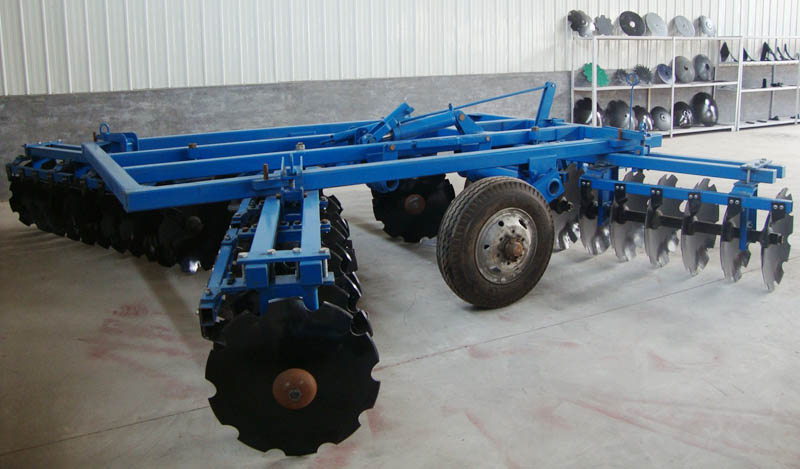

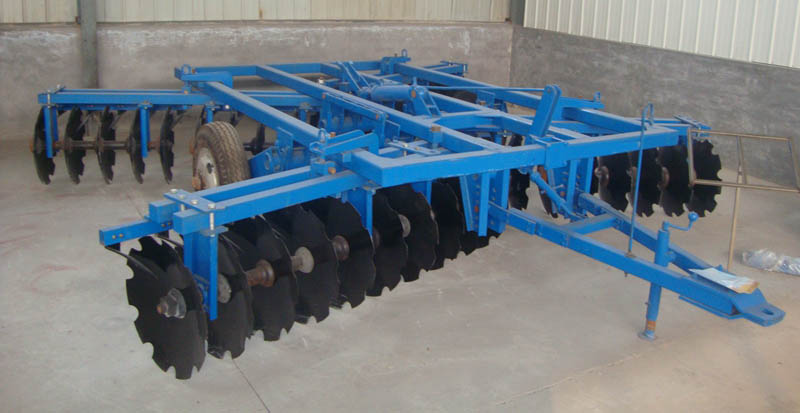

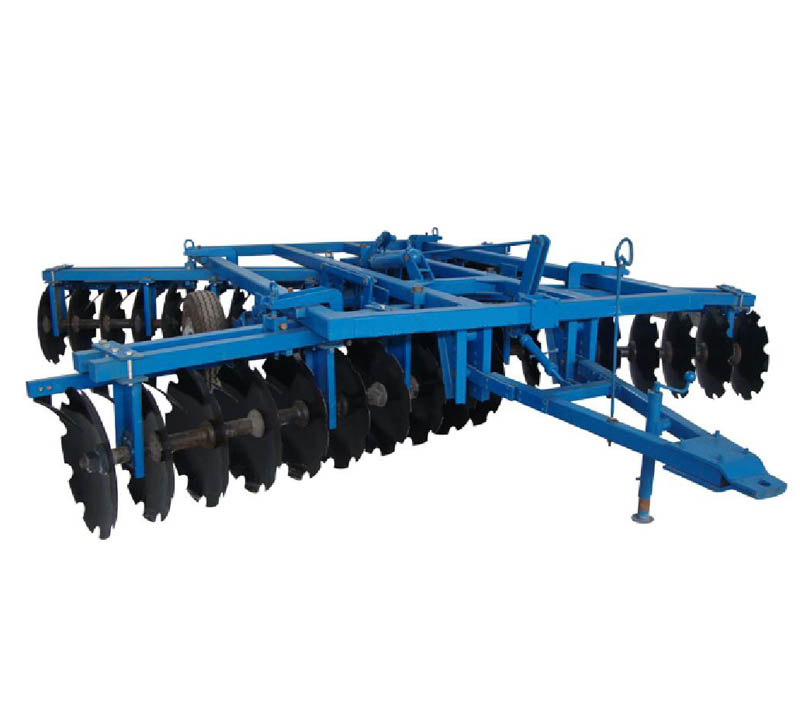

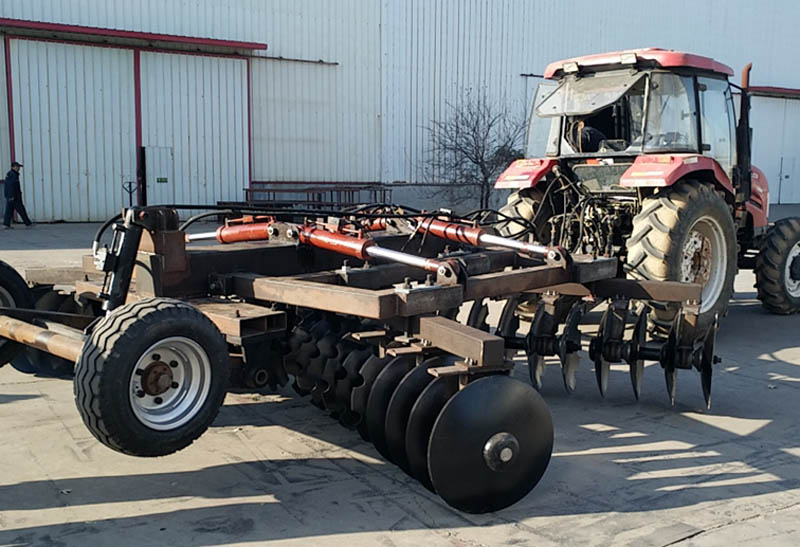

1BZD Hydraulic trailed opposed heavy-duty harrow

1BZD Hydraulic trailed opposed heavy-duty harrow 1BZD Hydraulic trailed opposed heavy-duty harrow 1BZD Hydraulic trailed opposed heavy-duty harrow 1BZD Hydraulic trailed opposed heavy-duty harrow 1BZD Hydraulic trailed opposed heavy-duty harrow

1BZD series hydraulic pressure heavy duty harrow are used for breaking up the soil and loosening of wasteland , shrub swamp ,heavy soil .It can rake the land instead of plough .

Model 1BZD-2.6 1BZD-3.0 1BZD-3.3 1BZD-4.0 1BZD-4.4 1BZD-4.8 1BZDF-4.5
Working width(mm) 2600 3000 3300 4000 4400 4800 4500
Working depth(mm) 200-250 250
Diameter of disc 660mm / 26inch 660mm / 26inch
Thickness of disc (mm) 5 6mm
No. Of disc(pcs) 16 18 20 24 28 32 40
Weight (kg) 1150 1250 1350 1500 1600 1800 3200
Matched power (hp) 60-70 70-80 80-90 90-100 100-110 110-120 150-160
Linkage Hydraulic trailed with tractor hydraulic trailed folding
