Product Details

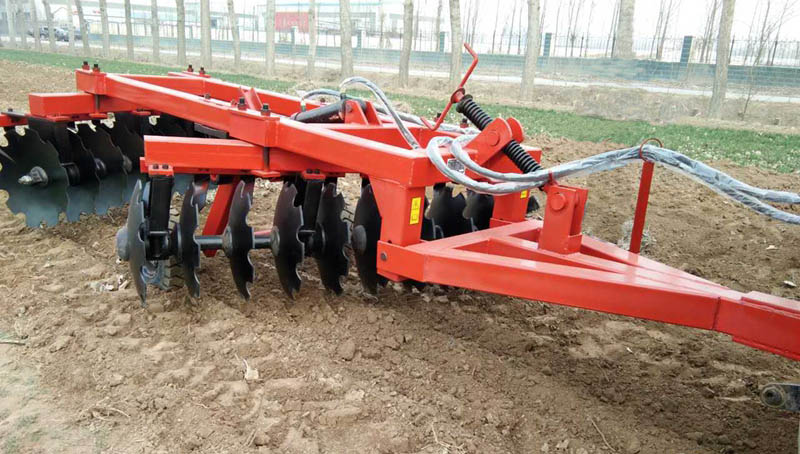

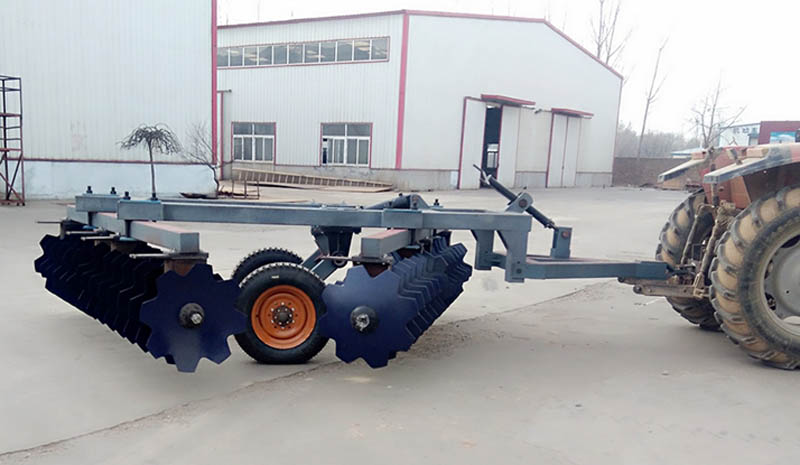

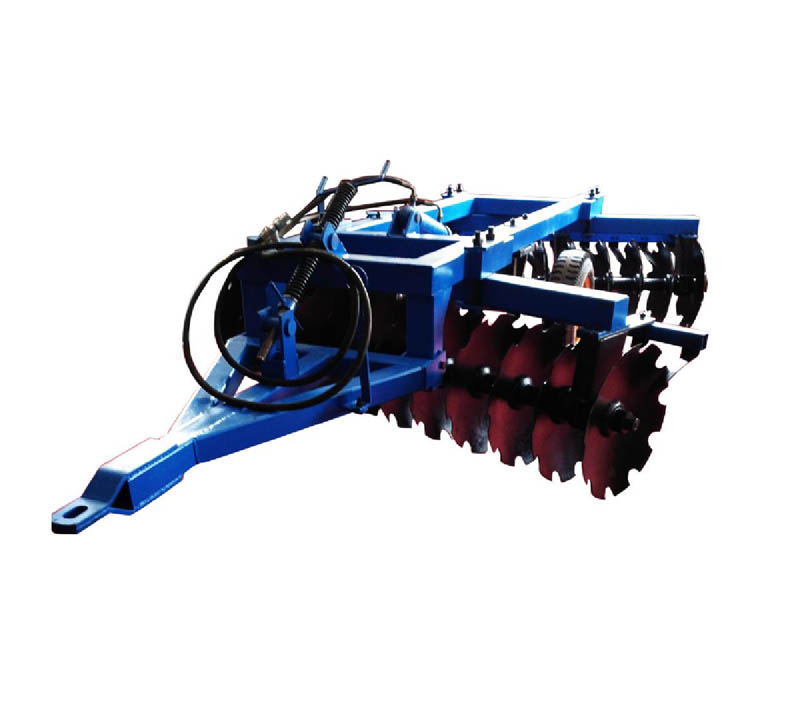

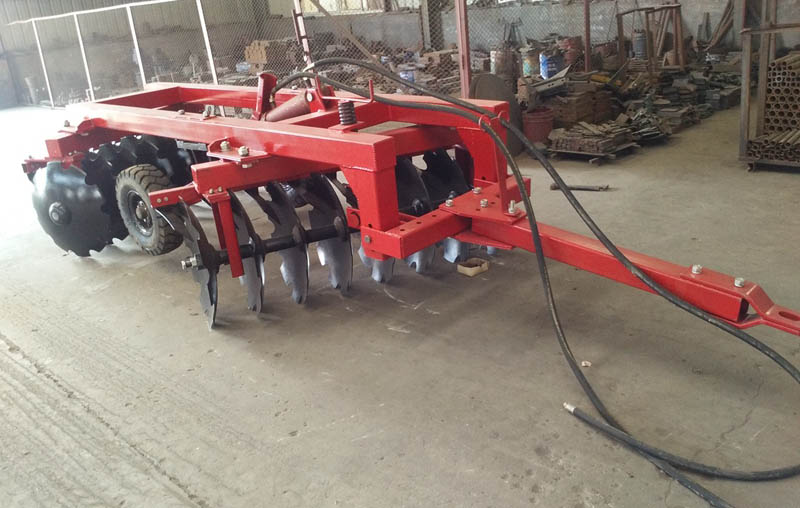

1BZ Hydraulic trailed heavy-duty harrow
1BZ series hydraulic offset heavy duty disc harrow has the high working efficiency , strong capability into the soil, and after plough loosen soil. This harrow can highly adapt to the sticky heavy soil, uncultivated field and those plots of many weeds. It is made of square tubes welded together which ensures simple structure and good rigidity. The harrow is also equipped with hydraulic lifting rubber wheels for convenient transportation and small turning radius, thus the production efficiency and lifetime of the harrow is dramatically improved.
Model | 1BZ-1.8 | 1BZ-2.0 | 1BZ-2.2 | 1BZ-2.5 | 1BZ-3.0 | 1BZ-3.4 | 1BZ-3.8 | 1BZ-4.2 | 1BZ-5.3 |
Working width(mm) | 1800 | 2000 | 2200 | 2500 | 3000 | 3400 | 3800 | 4200 | 5300 |
Working depth(mm) | 200-250 | ||||||||
Diameter of disc | 660mm / 26inch | 660mm / 26inch | |||||||
Thickness of disc (mm) | 5 | 6 | |||||||
No. Of disc(pcs) | 16 | 18 | 20 | 24 | 28p | 32 | 36 | 40 | 48 |
Weight (kg) | 1150 | 1250 | 1350 | 1500 | 1600 | 1800 | 2100 | 2300 | 3750 |
Matched power (hp) | 60-70 | 70-80 | 80-90 | 90-100 | 100-110 | 110-120 | 130-140 | 150-160 | 160-180 |
Linkage | Hydraulic trailed with tractor |
