Product Details

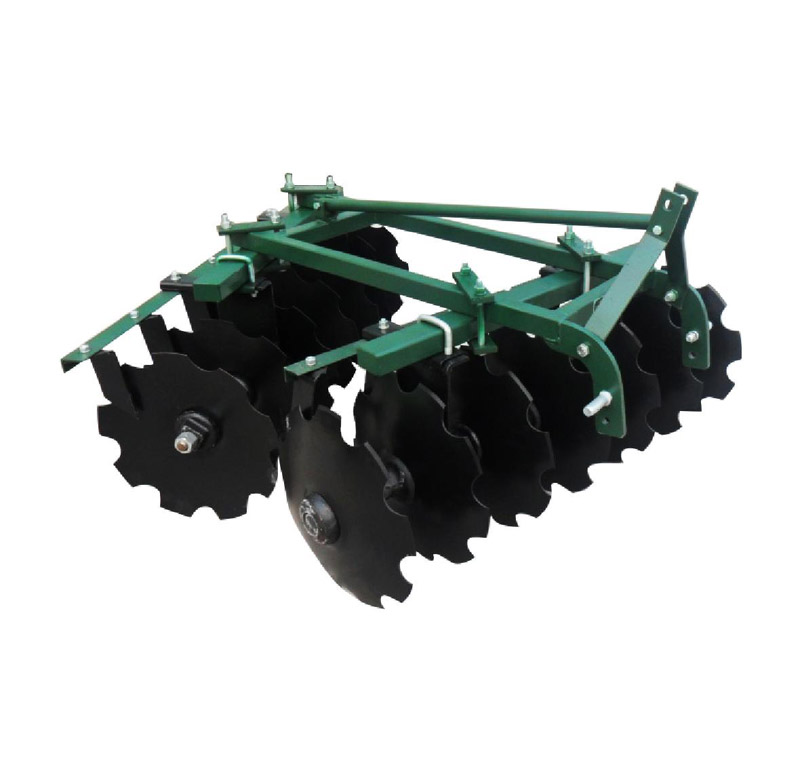

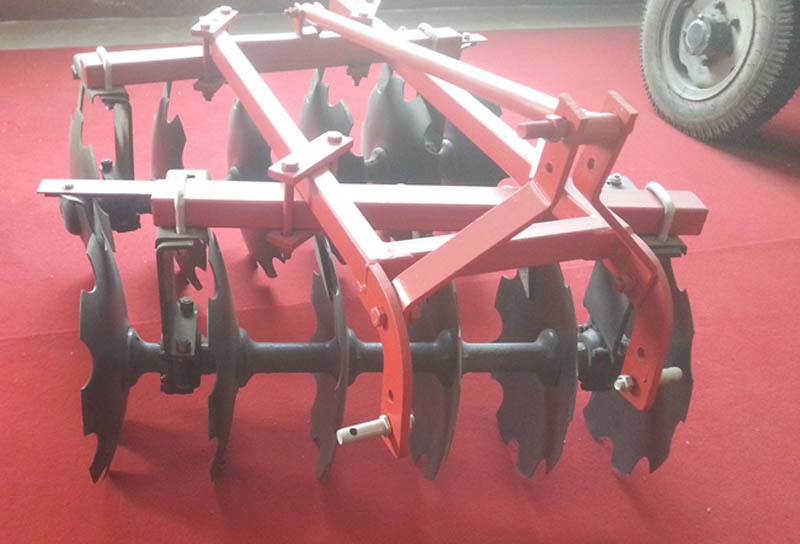

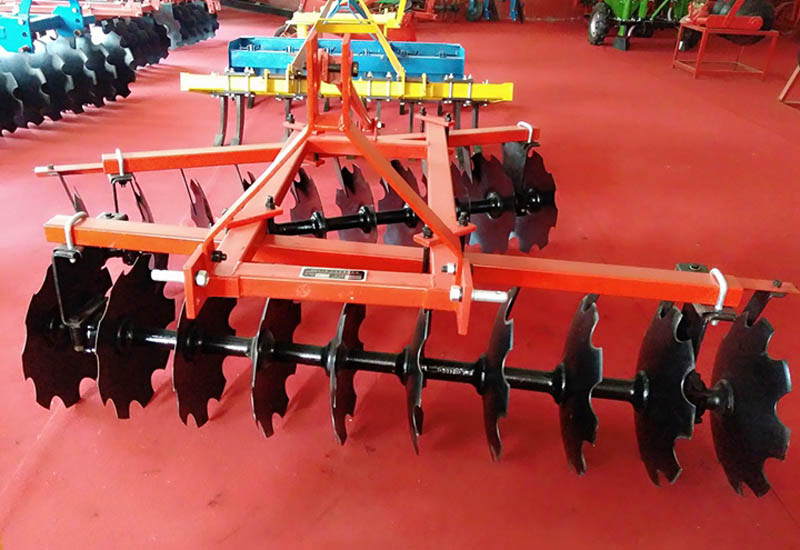

1BQX Mounted Light-duty Disc Harrow
This series are used for crushing clods after tillage, preparing soil before seeding, loosening the soil, combining the soil and fertilizer, and cleaning away stubble of plants in light soil field. With reasonable structure, strong ability to rake, durable, easy to use and maintain, etc.
| Model | 1BQX-1.1 | 1BQX-1.3 | 1BQX-1.5 | 1BQX-1.7 | 1BQX-1.9 | 1BQX-2.2 | 1BQX-3.4 |
| Working Width (mm) | 1100 | 1300 | 1500 | 1700 | 1900 | 2200 | 3400 |
| Working depth (mm) | 100-140 | ||||||
| No. of disc (pcs) | 12 | 14 | 16 | 18 | 20 | 24 | 42 |
| Diameter Of disc | 460mm / 18inch | ||||||
| Weight (kg) | 200 | 220 | 240 | 260 | 290 | 350 | 1100 |
| Linkage | Three-pointed mounted | Trailed | |||||
| Matched power (hp) | 12-15 | 15-18 | 25-30 | 30-35 | 35-40 | 55-60 | 80-100 |
