Farm Implement

1BQDX Mounted Opposed Light-duty Disc Harrow

This series harrow used for crushing clods after tillage,seedbed preparation ,loosening the soil, mixing soil and fertilizer before savin, and cleaning away stubble of plants in light soil field.
Product Details

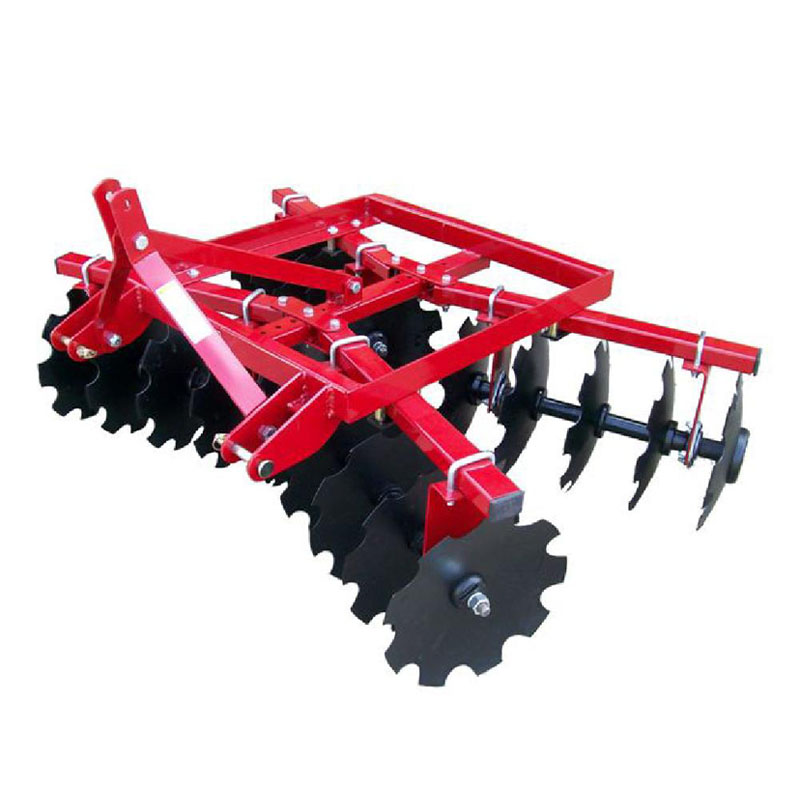

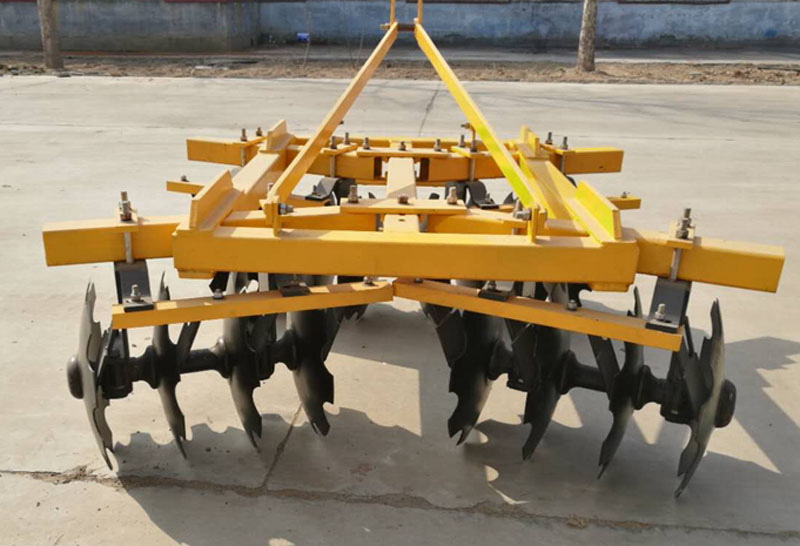

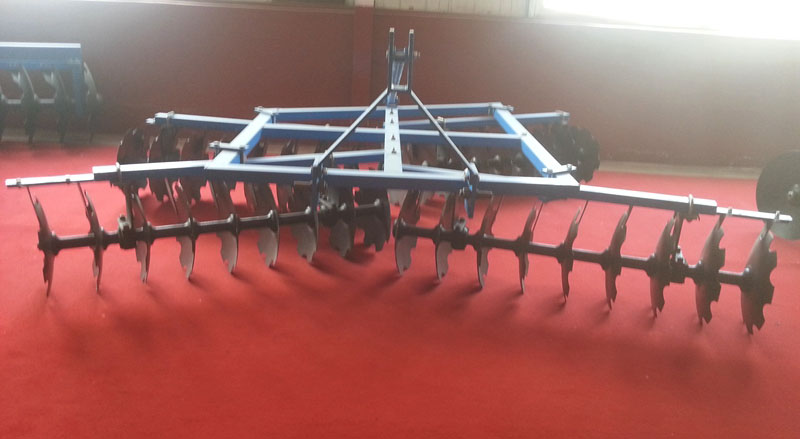

1BQDX Mounted Opposed Light-duty Disc Harrow

1BQDX Mounted Opposed Light-duty Disc Harrow 1BQDX Mounted Opposed Light-duty Disc Harrow 1BQDX Mounted Opposed Light-duty Disc Harrow

This series harrow used for crushing clods after tillage,seedbed preparation ,loosening the soil, mixing soil and fertilizer before savin, and cleaning away stubble of plants in light soil field.
With reasonable structure, strong ability to rake, durable, easy to use.

Model 1BQDX-1.3 1BQDX-1.6 1BQDX-2.2 1BQDX-2.6 1BQDX-3.0 1BQDX-3.4
Working width(mm) 1400 1800 2200 2600 3000 3400
Working depth(mm) 100-140
Diameter of disc 460mm / 18inch
Thickness of disc(mm) 3
No. Of disc(pcs) 16 20 24 28 32 36
Weight(kg) 340 390 440 490 495 530
Matched power(hp) 30-35 35-45 45-55 60-75 75-80 80-95
Linkage Three-pointed mounted with tractor
