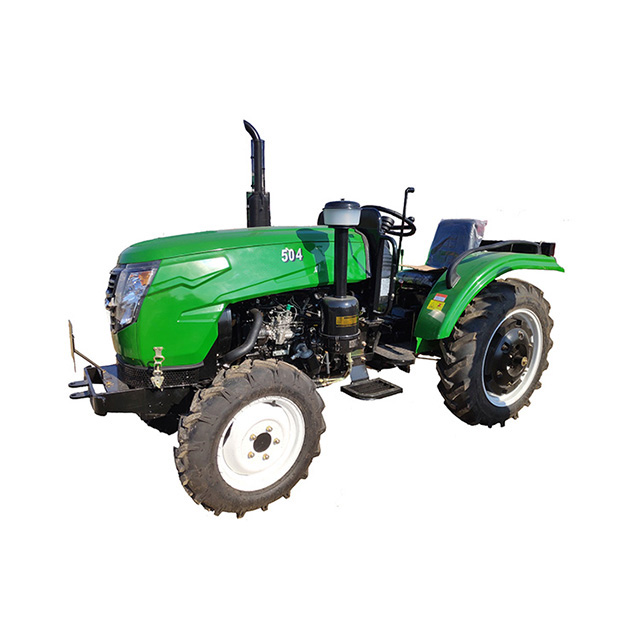

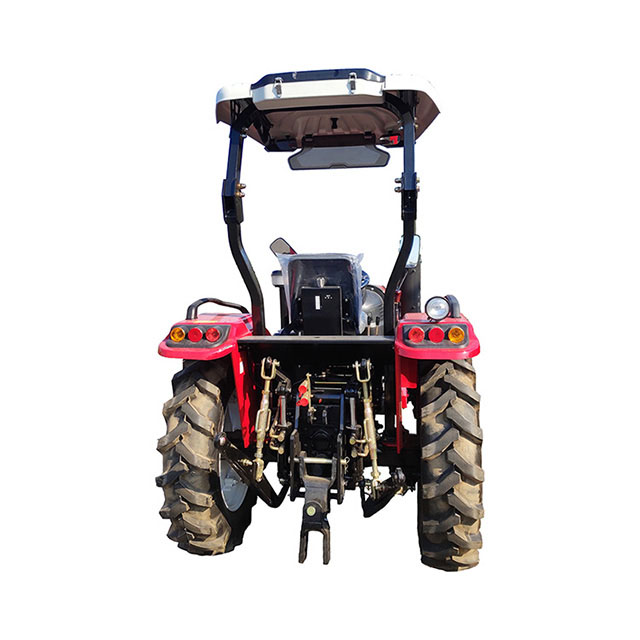

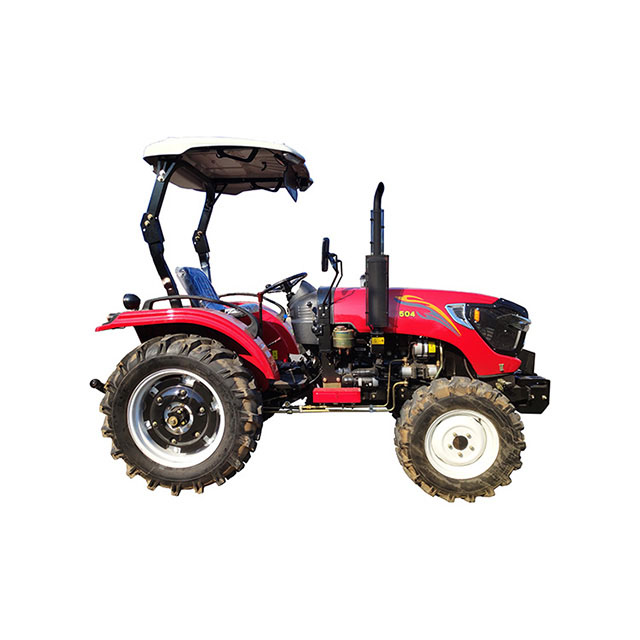

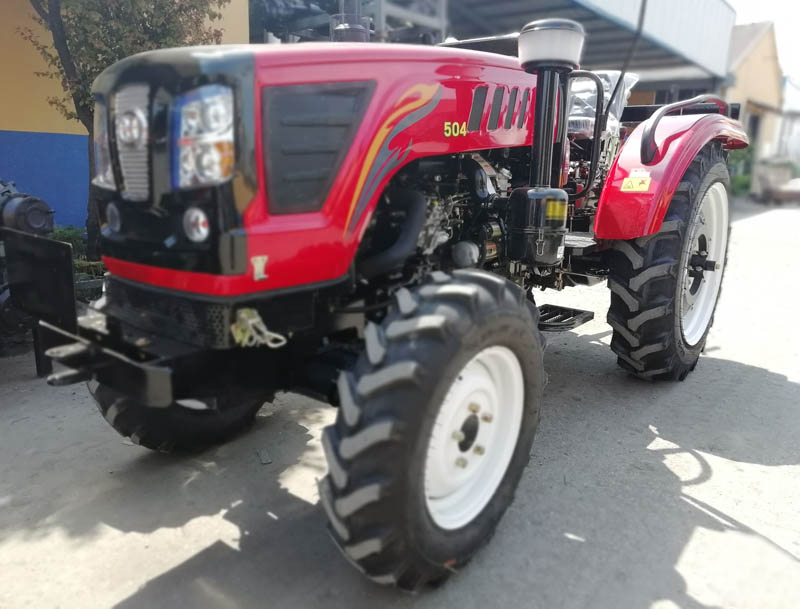

The series tractor is designed basing on the normal type, and making strong design. Also equipped with PTO under the international standard. It is a new generation tractor and has the characteristics of large power low fuel consumption, more shift gears, good matched performance and convenient operation and maintenance.
- Product Model
|
504 |
|
|
|
|
| 2. wheel drive |
4x4 |
| 3. Dimension(L*W*H)mm |
3790*1620*2130 |
| 4. Weight(kg) |
2120-2210 |
| 5. front wheel tread(mm) |
1265mm |
| 6. rear wheel tread(mm) |
1312-1500 adjustable |
| 7. min land Clearance(mm) |
425 |
| 9. gear shifts |
8F+2R |
| 10. Rear Suspension |
Three-point Suspension |

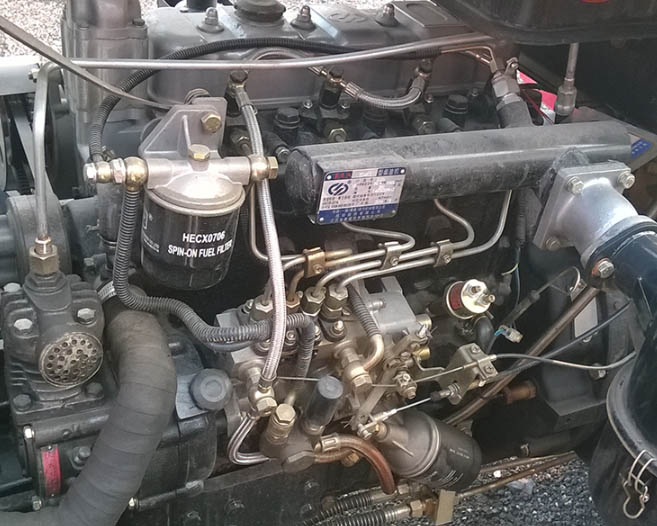

| 11. Engine model |
Direcct engine , 4 cylinder |
| 12. Rated power(kw) |
29.4 |
33.1 |
36.7 |
40.43 |
44 |
| 13. Rated revolution |
2400(r/min) |
| 14.Start way |
Electricity start |
| 15. Transmission |
4x(2+1)x2 shifts |
| 16. Cluth |
Single chip,Dry friction,Constant conjunction and doublr clutch |
| 17. PTO Speed |
6 spline 540/1000 |
