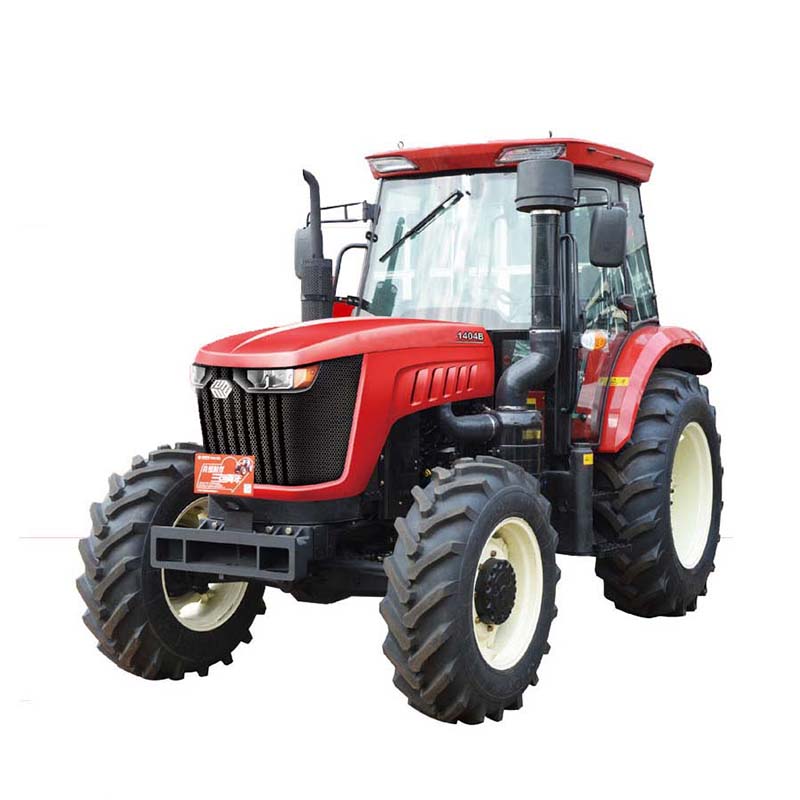

Powerful 140HP Wheel Tractor (1404B) for Modern Farming
Product Overview The 1404B wheel tractor is a strong and reliable machine. It has 140 horsepower, which makes it perfect for large farms. This tractor is built for heavy work like plowing, sowing, and hauling. It uses a 4-wheel drive (4WD) system to work well on mud or soft soil.
Key Features of the 1404B Tractor:
-
Strong Engine: High power with low fuel consumption.
-
4-Wheel Drive: Provides great grip and stability on difficult ground.
-

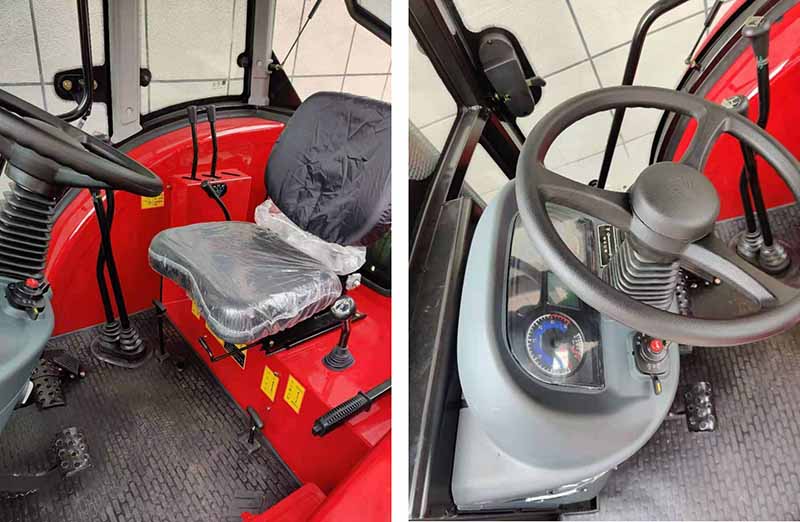

Comfortable Cab: The cabin has a wide view and air conditioning. This helps the driver work longer hours without getting tired.
-
Easy to Maintain: All parts are easy to reach for quick service and oil changes.
-
Versatile: You can connect it to many tools, such as plows, harrows, and trailers.
Features:
- Use 16+8 gears, reasonable gear speed matching and strong adaptability
- The rear-mounted double cylinders are used to steer the front axle, the left and right hands are even, the steering angle is large, the turning radius is small, and the steering is flexible
- The water tank uses a three-dimensional dust-proof net with a large air inlet area to prevent debris from entering the water tank, easy to clean and prevent high temperature

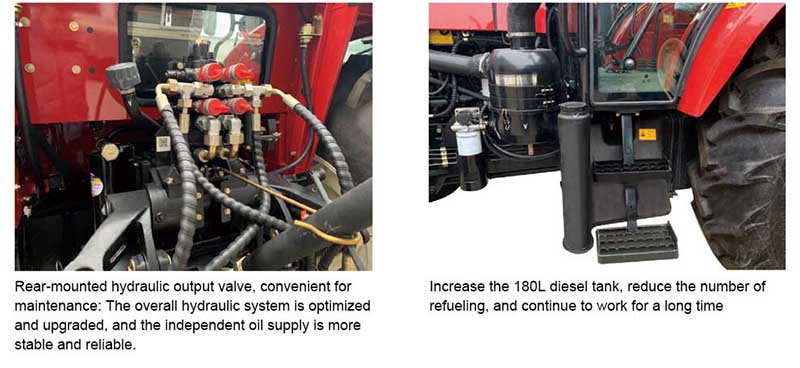

- Double oil cylinders with strong pressure increase, independent oil supply, stable and reliable, and strong adaptability to water and dry fields
- Optional fully enclosed luxury cab, good sealing performance, dust-proof, noise-proof, more comfortable
| Model | 1404B-1 | 1404 | |
| Drive form | 4*4 Four-Wheel Drive | 4*4 Four-Wheel Drive | |
| Number of gears | 16+8 | 16+8 | |
| Size | 4530*2130*2820 | 4858*2130*2820 | |
| Engine | Power（kW） | 103 | 103 |
| Rated speed（r/min） | 2300 | 2300 | |
| Adjustable wheelbase
Front wheel（mm） |
1610/1710/1810/1910 | ||
| Adjustable wheelbase
Rear wheel（mm） |
1620/1720/1820/1920/2020 | ||
| Weight（kg） | 4025（Without cab） | 4325（With safety frame） | |
| 4325（With cab） | 4625（With cab） | ||
| Calibration traction（kN） | ≥31.8 | ≥31.8 | |
| Minimum ground clearance（mm） | 379 | 379 | |
| Minimum ground clearance | Power（kW） | ≥81 | ≥88 |
| Rotating speed（r/min） | 540/760(Optional 540/760/850/1000 ) | ||
| Wheelbase（mm） | 2332 | 2659.5 | |
| Fuel tank volume（L） | 180 | 180 | |
Product Description
- The shift synchronizer makes shifting lighter and convenient.
● Paddy tire is optional.
● Use Weichai or Yuchai engine, matching Bosch common rail system for better performance.
● Adopt transmission 24+8 for meeting different tractor implements.
● Good sealing perforamnce of axles ensure working in water or deep mud field.
● Use 14 inch large clutch, friction plate uses imported material.
● More comfortable with a luxurious suspension seat.
● Fully enclosed luxury cab with good sealing performance, dust and noise prevention, and more comfortable.
● High quality bearings are used for long work prolonging work life.
Why choose the 1404B model?
-
High Efficiency: It can finish big tasks faster because of the 140HP engine.
-
Durability: The frame is made of strong steel. It can work in hot and cold weather.
-
Better Control: The steering is smooth, making it easy to drive even for new operators.
