400 Wheel tractor 40HP tractor

This series maiddle hp tractor, whitch directly connected with its engine.Jaw type differential lock can improve the pass-ability
Product Details

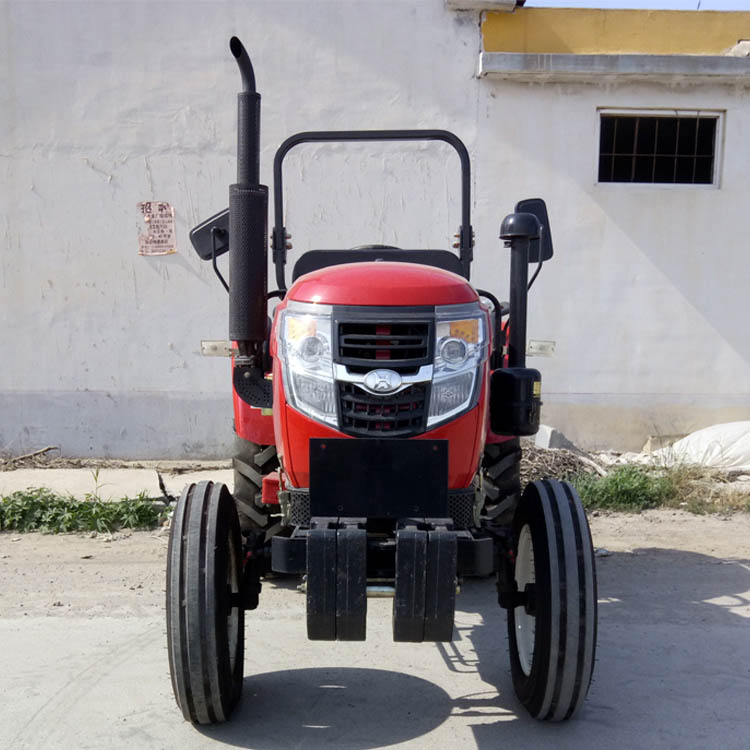

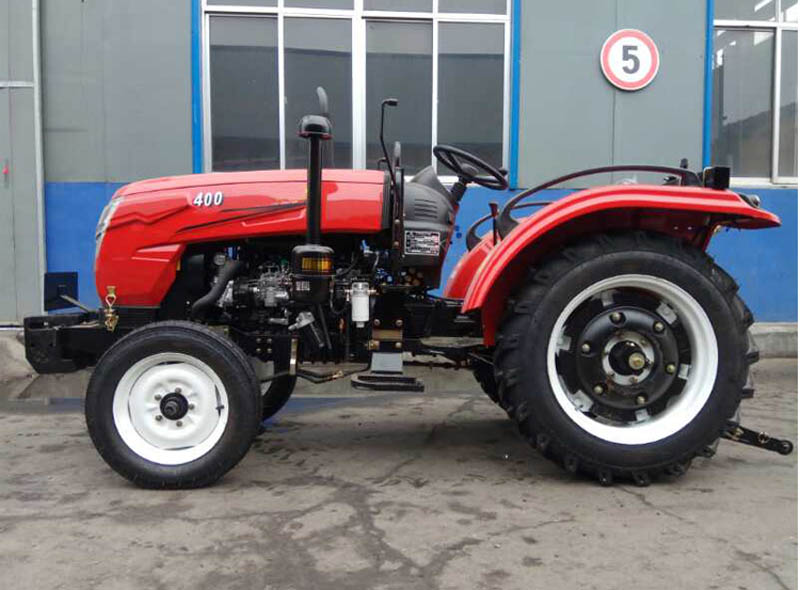

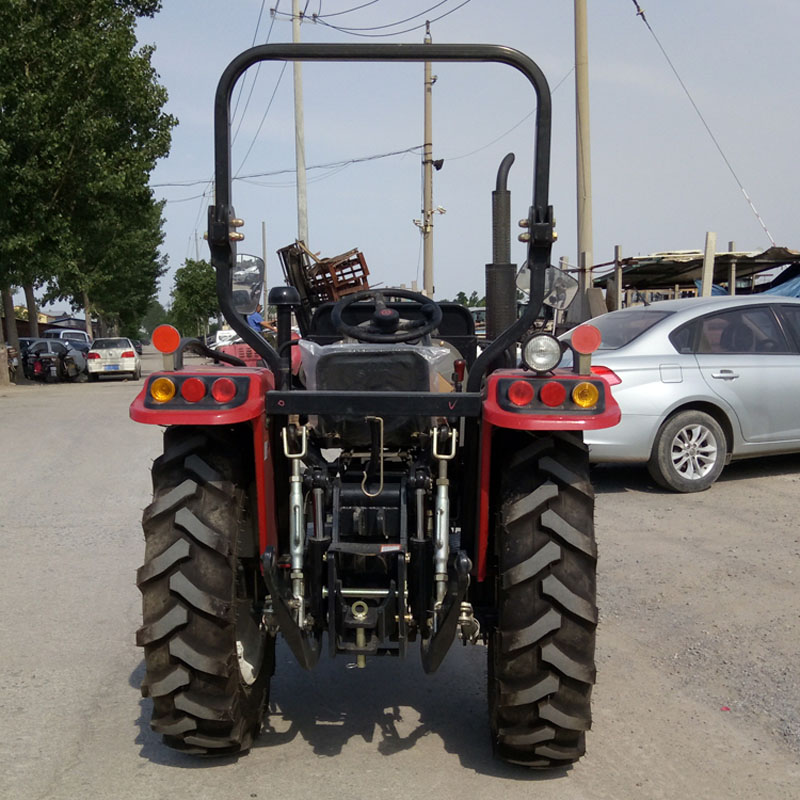

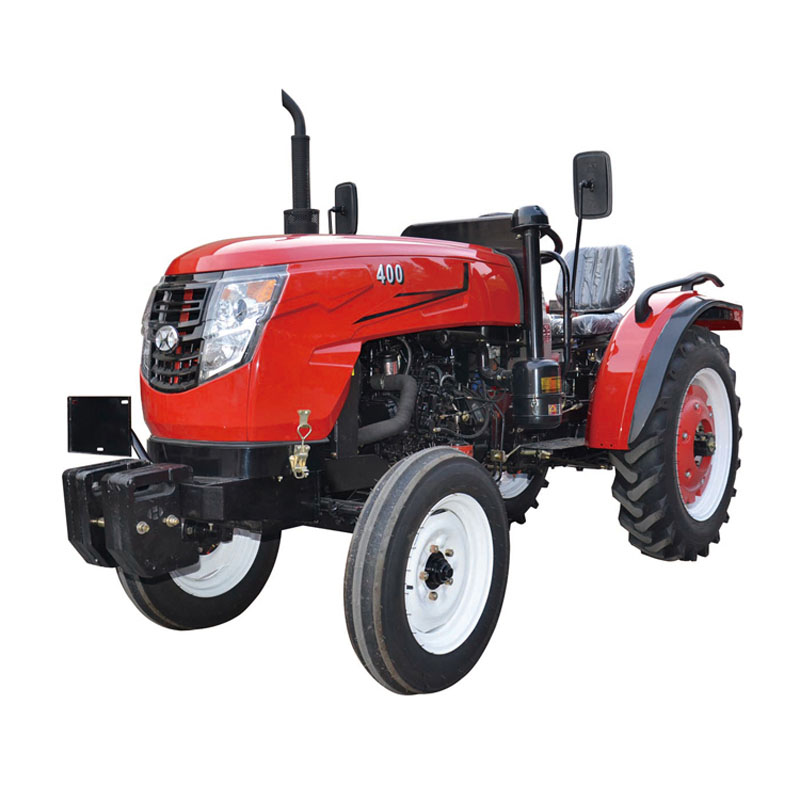

400 Wheel tractor

400 Wheel tractor 400 Wheel tractor 400 Wheel tractor 400 Wheel tractor

Products model 264(260) |284(280) |304(300) |354(350) |404(400) |454(450)
Wheel drive  4x4   (4x2)
Dimension (L*W*H)mm  3350x1500x1860
Weight (KG)  1210-1380
Front wheel tread(mm)  850,960,1000,1100,1200,1300 adjustable
R wheel tread(mm)  960-1300 unlimited  adjustable
Wheel base(mm)  1750
Minimum land clearance(mm)  330 (340)
Gear shift  8F + 2R
Tyre size  9.5-24/650-16(9.5-24/550-16)



Engine specification:



Brand Weichai/JD/LD/QC/XC
Type Water cooling,Vertical,4 Stroke,Direct Injection
Rated power(kw) 19.1      |20.58      |22.06      |25.7      |29.4      |33.1
Rated revolution (r/min) 2300/2400
Start way electricity start
Transmission box (4+1)x2 shifts
Clutch Single,Dry Friction, Dual Stage Clutch
PTO speed(kw) 6 spline 540/760 or 540/720

This series maiddle hp tractor, whitch directly connected with its engine.Jaw type differential lock can improve the pass-ability.

Hydraulic output interface can make direct connection with the dump trailer. This series tractor can have many differrt configurations according to customeris demands; single stage clutch or two stage cluth, (4+1)*2 eight shifts, one or two speed PTO, fixed or adjusted tread.
