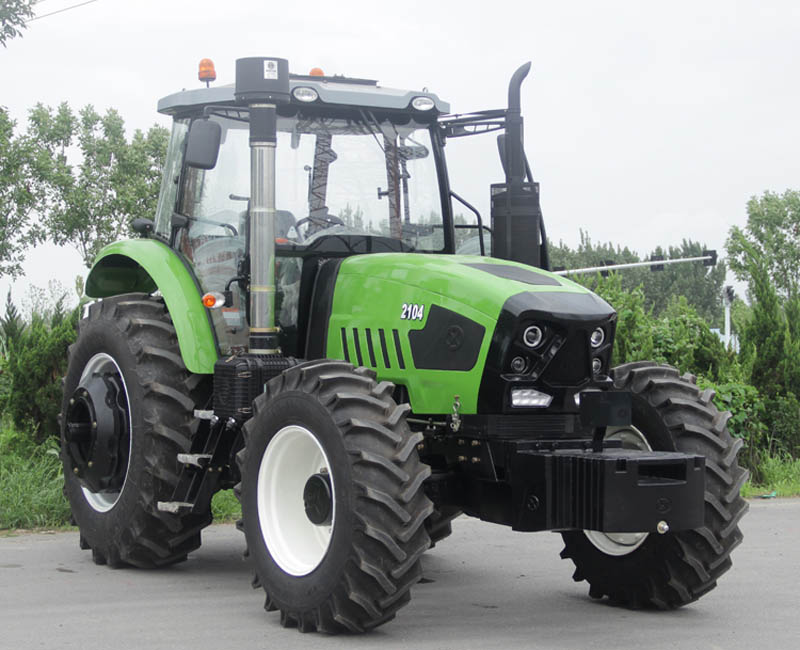

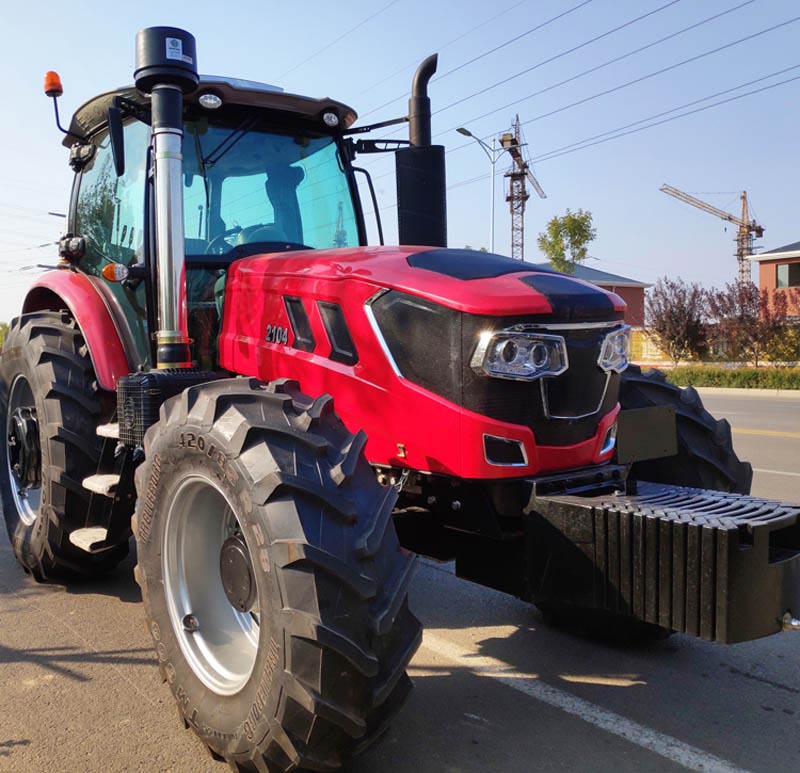

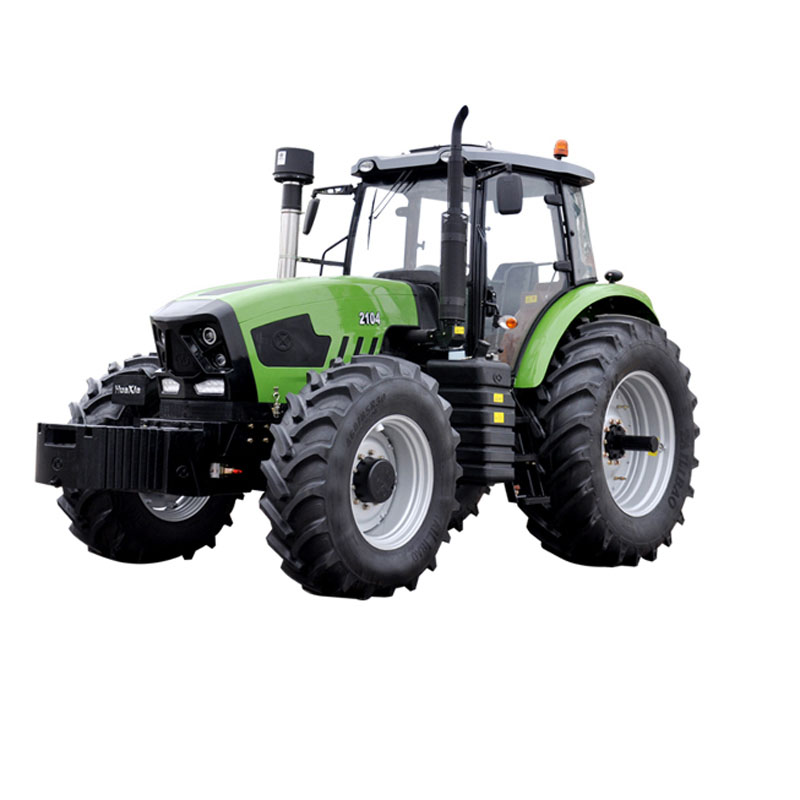

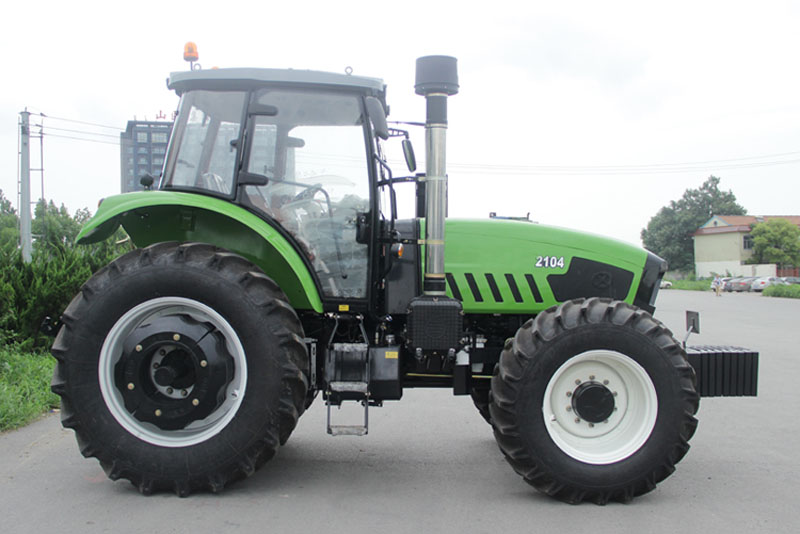

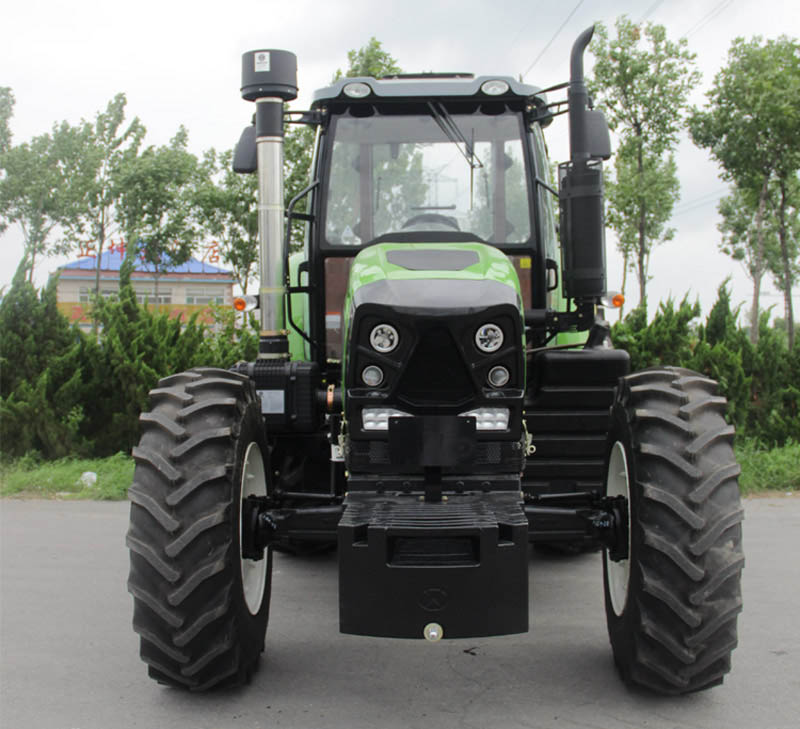

2104 Wheel Tractor 210HP Tractor
This series tractor is 4WD model and with reasonable structure. Our company research and develop the new type special gearbox and rear axle, with the synchronize shifts + shuttle shift , bolder half shaft,stronger gears, and reinforced brake assembly;
For the front axle, the tractor use special high power electric hydraulic differential lock. The hydraulic steering, make the operation much more flexible, and much more suitable for any different working environment;
Weichai-DEUTZ engine, and the special 16 inch double cluth, make the tractor much more powerful;
The electric hydraulic cluth, independent driving and braking system, make the operation much convenient and lobar-saving.
Double speed power output(PTO), multi-way hydraulic output, and unlimited adjustable rear wheel tread, suit for a variety of agricultural farm implements requirements, with many uses;
The tractor can be equipped with new special luxury air-conditioned cabin, which is safe, comfortable, and convenient on maintenance.
General specification:
| Products model | 2104 |
| Wheel drive | 4x4 |
| Dimension (L*W*H)mm | 5400x2460 (2420~2480) x3140 |
| Weight (KG) | 7750 (8200) |
| Front wheel tread(mm) | 1990 |
| R wheel tread(mm) | 1840 (1820~1910) |
| Wheel base(mm) | 2890 |
| Minimum land clearance(mm) | 430 |
| Gear shift | 16F + 16R |
| Tyre size | 16.9-28/20.8-38 (16.9-28/18.4-42) |
Engine specification:
| Brand | Weichai |
| Type | Water cooling,Vertical,4 Stroke,Direct Injection |
| Rated power(kw) | 154 |
| Rated revolution (r/min) | 2200 |
| Start way | electricity start |
| Transmission box | 4x4x(1 + 1) shifts |
| Clutch | Single,Dry Friction, Dual Stage Clutch |
| PTO speed(kw) | 8 540/1000 |
