3ZT SERIES OF SPRING CULTIVATOR

The 3ZT series of spring cultivator is developed by our company according to the demand of foreign market.
Product Details

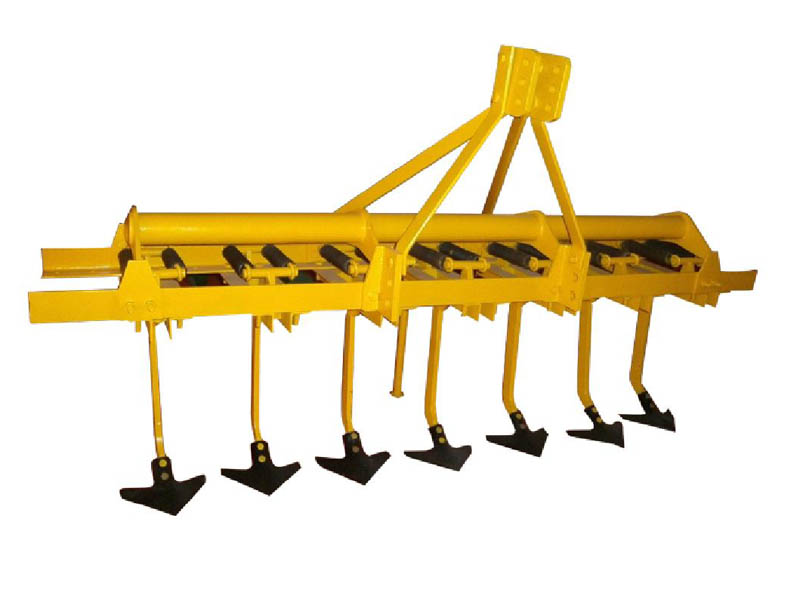

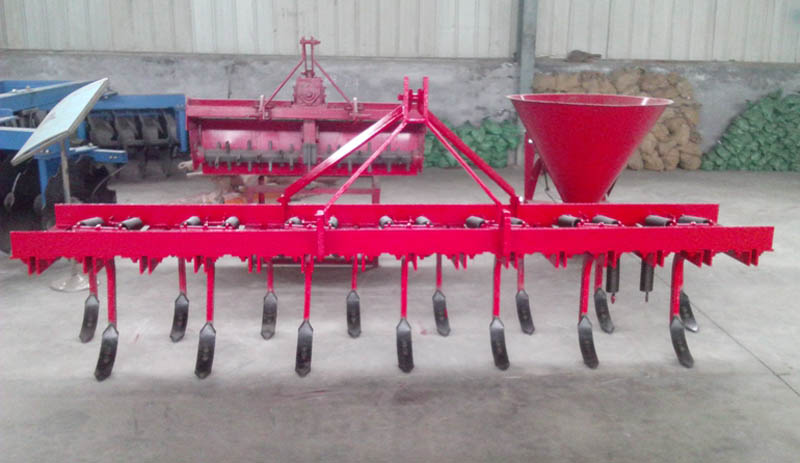

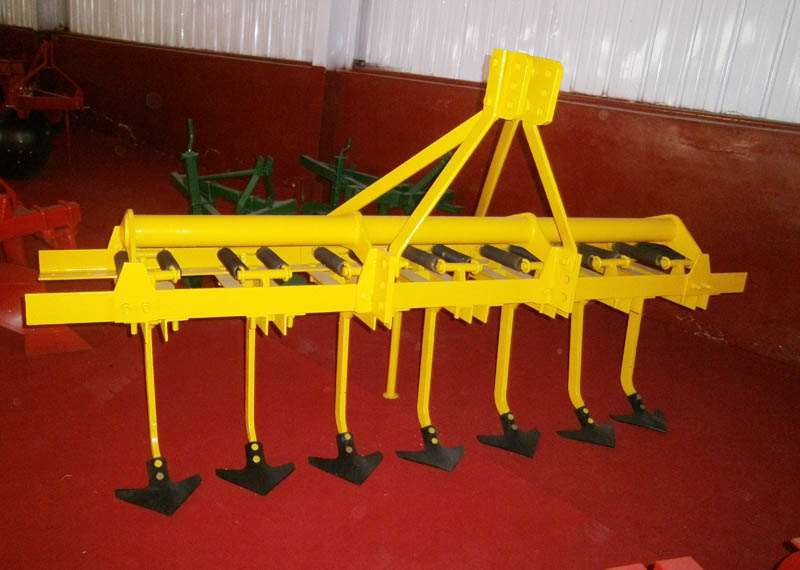

3ZT SERIES OF SPRING CULTIVATOR

3ZT SERIES OF SPRING CULTIVATOR 3ZT SERIES OF SPRING CULTIVATOR 3ZT SERIES OF SPRING CULTIVATOR 3ZT SERIES OF SPRING CULTIVATOR

The 3ZT series of spring cultivator is developed by our company according to the demand of foreign market.. This machine adopts double-spring tension device which enables the tines bounce automatically during operation when meet with obstacles and return to normal working quickly after over them ,by which the tines are protected .It has advantage of row spacing to be conveniently adjusted and the depth to be easily controlled. The machine is suitable for cultivating and loosening soil in the corn ,cotton ,and beans field.

Models Unit 3ZT-1.0 3ZT-1.4 3ZT-1.8 3ZT-2.2 3ZT-2.6 3ZT-3.0
Working width mm 1000 1400 1800 2200 2600 3000
No. of plowbody pcs 5 7 9 11 13 15
Working depth mm 100-200
Total weight kg 260 300 350 420 490  580
Matched power hp 25 30-40 40-50 50-70 70-90 80-100
Linkage Three-pointed mounted
