3Z adjustablde ridger

3Z adjustablde ridger is mainly used for making ridge in the field after tillage
Product Details

3Z adjustablde ridger

3Z adjustablde ridger 3Z adjustablde ridger 3Z adjustablde ridger

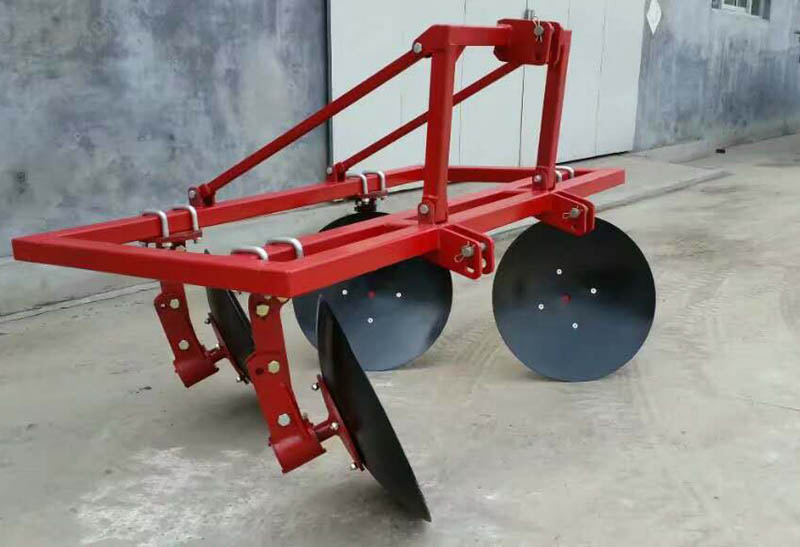

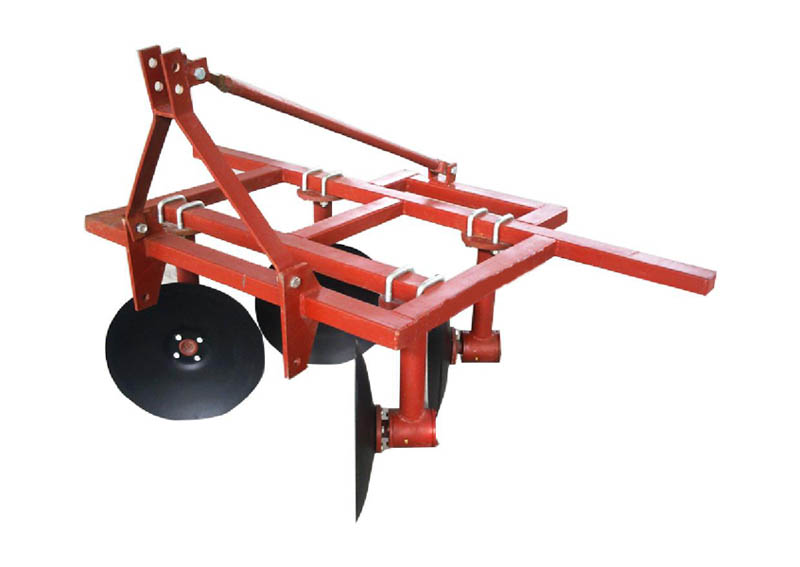

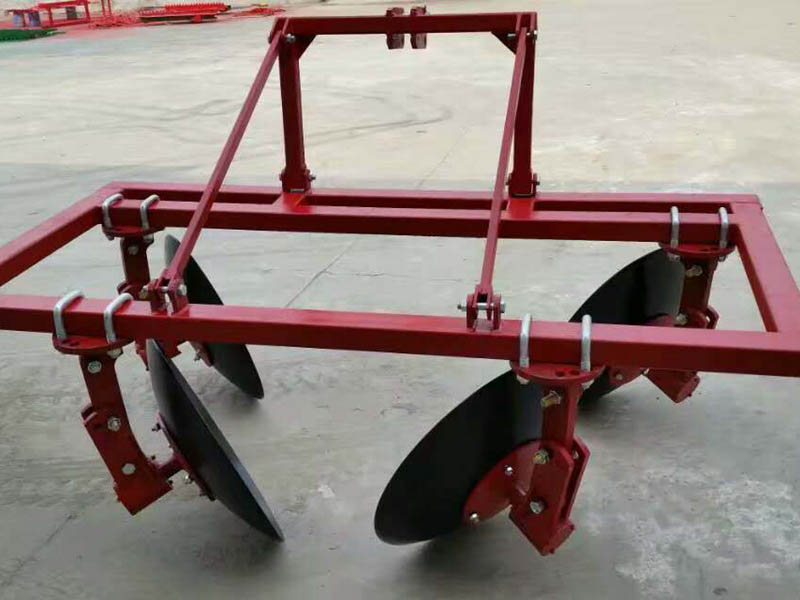

3Z adjustablde ridger is mainly used for making ridge in the field after tillage.The main frame is made of rectangular tube welded together ,assembled with the angle adjustable disc ridging unit .The discs are made of qualified 65Mn steel plate with heat treatment .The machine is steady and durable ,conveninent for transport and easy to adjust ,operate and maintenance.

Model Unit 3Z -80 3Z -120 3Z-140 3Z-160 3Z-180 3Z-260
Working width mm 800 1200 1400 1600 1800 2600
Ridger width mm 200-450 200-450 200-450 300-500 300-50 300-500
Ridger height mm 150-240 150-240 150-300 150-300 150-300 150-300
Matched power hp 20 25-30 30-40 50 50-70 70-90
Total weight kg 135 150 165 180 200 350
Linkage Three-pointed mounted
