Tractor

1354 Wheel Tractor 135HP Tractor

The series tractor is a versatile, high-horsepower agricultural tractors. The model has compact structure,convenient operation, flexible steering, traction, versatile and easy maintenance Characteristics, the series use the big model chassis
Product Details

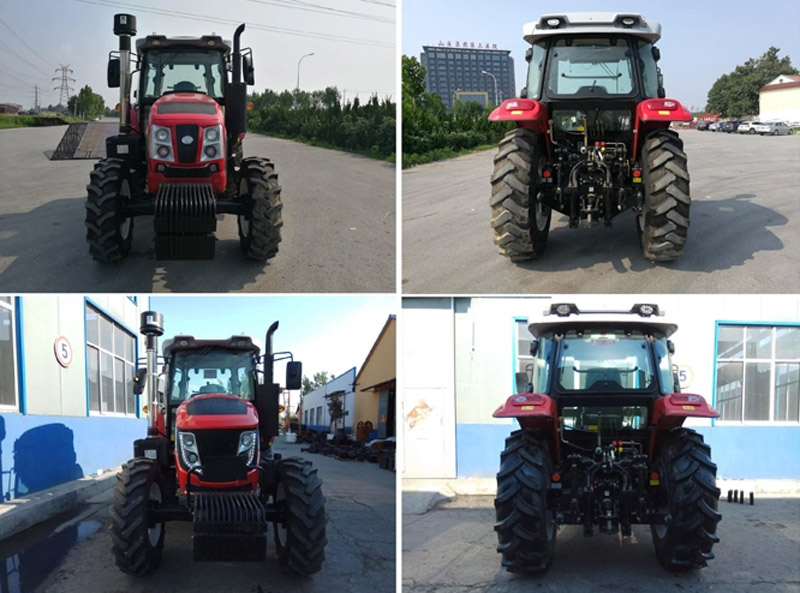

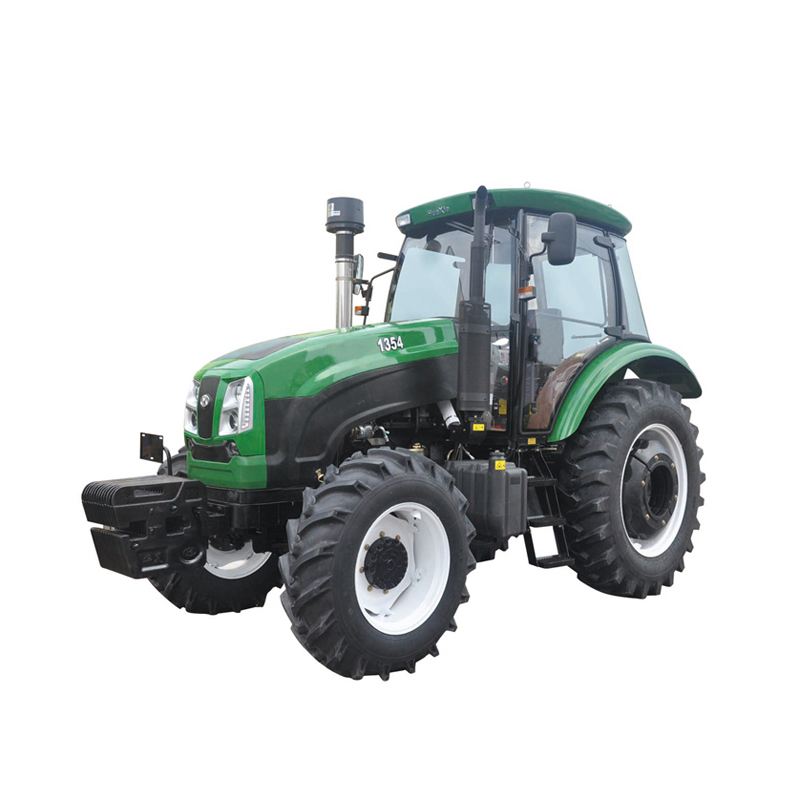

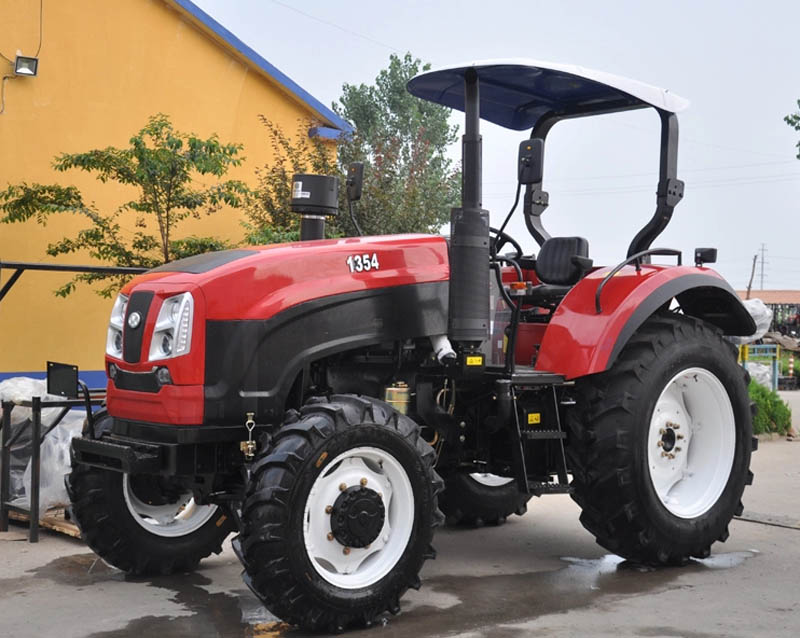

1354 Wheel Tractor 135HP Tractor

1354 Wheel Tractor 1354 Wheel Tractor 1354 Wheel Tractor 1354 Wheel Tractor

The series tractor is a versatile, high-horsepower agricultural tractors. The model has compact structure,convenient operation, flexible steering, traction, versatile and easy maintenance Characteristics, the series use the big model chassis, 4 wheel drive, 16F+8R gear box, hydraulic steering, double clutch, and the 3-point linkage is adjustable by floating way. The series can choose to equip the roll bar, hydraulic multi-valves, heater and AC cabin.





General specification:



Products model 1354
Wheel drive 4x4
Dimension (L*W*H)mm 5060 x 2330 x 2983
Weight (KG) 5510
Front wheel tread(mm) 1784,1792,1912,1954,2074,2082,2202 limited adjustable
R wheel tread(mm)  1650-2285 Unlimited adjustable
Wheel base(mm)  2582
Minimum land clearance(mm)  480(Front axle)
Gear shift 16F + 8R
Tyre size  14.9-24/18.4-34



Engine specification:



Brand Weichai/QC/YTO
Type Water cooling,Vertical,4 Stroke,Direct Injection
Rated power(KW) 95.6/99.2 or 99.3
Rated revolution (r/min) 2200/2300/2400
Start way electricity start
Transmission box 4x4x(2 + 1) x2 shifts
Clutch Single,Dry Friction, Dual Stage Clutch
PTO speed(KW) 8 spline  540/760 or 760/850 or 540/1000
