Product Details

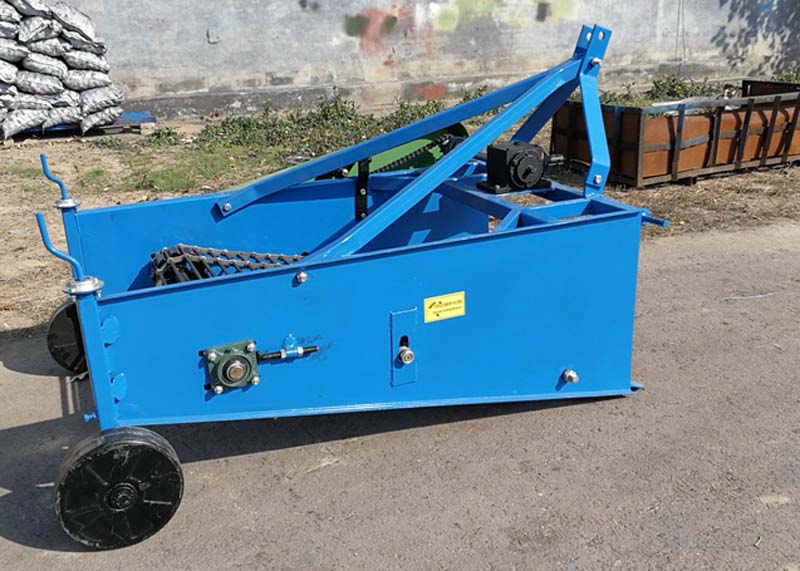

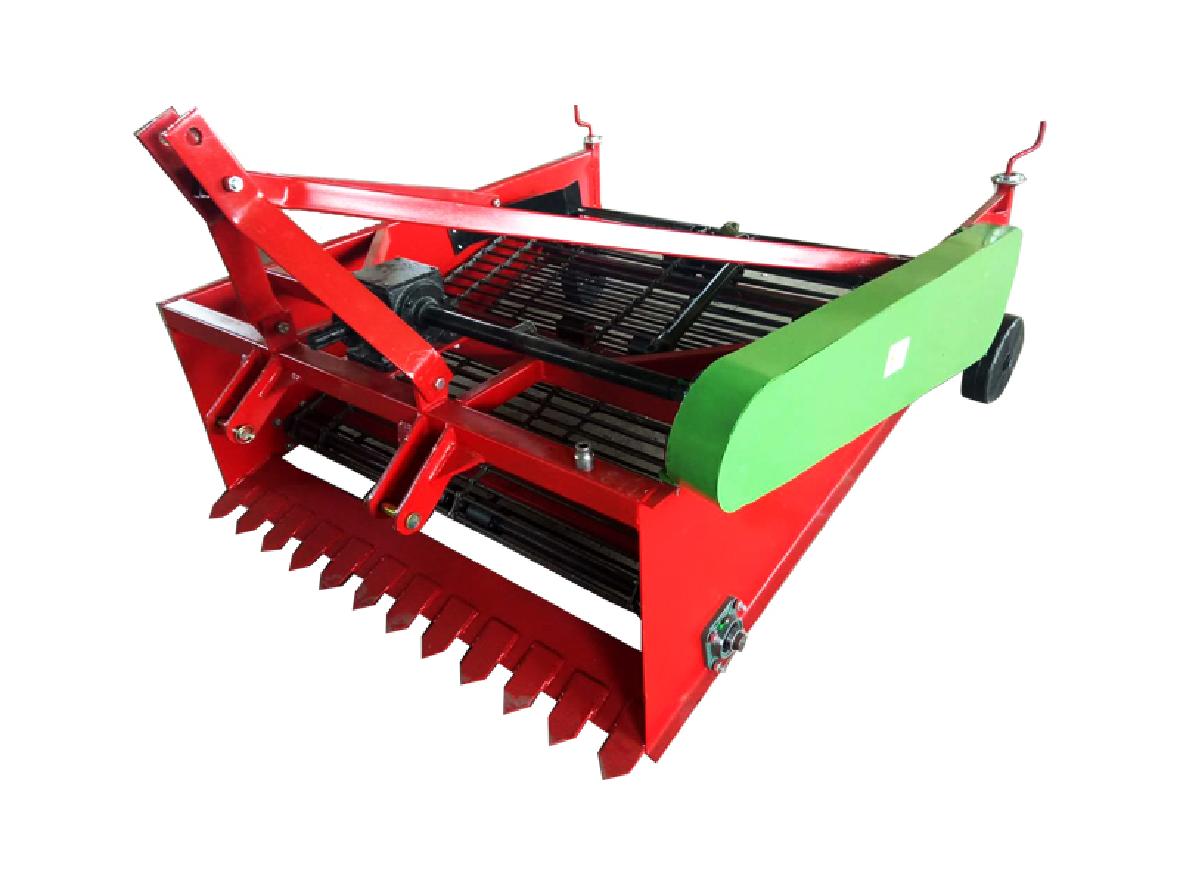

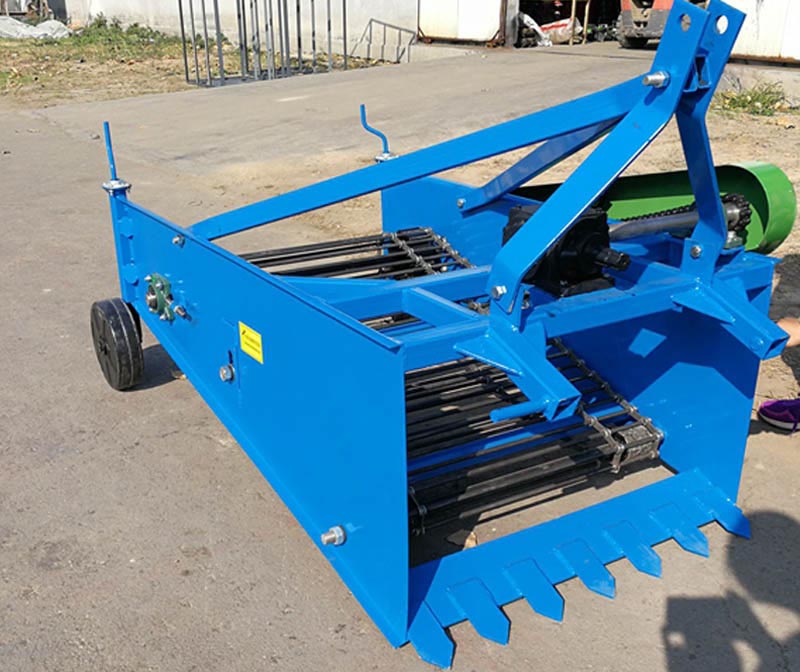

Potato harvester
This product is mainly used for harvesting potato ,garlic ,sweet potato ,peanut and other underground rhizome crops .It has the high harvest efficiency,the low breakage rate,the revolution vividly does not have the vibration ,It never stops up by the grass ,leaks the soil quickly .The structure is simple and the service life is longer .
| Model | 4U-1 | 4U-1A | 4UZ-1 | 4U-2 | 4U-2B | 4U-3 |
| Row number | Single row(casting) | Single row(casting) | Single row(casting) | Double row(Casting) | Double row(Self-loading) | Double row(Self-loading) |
| （cm） | 55-80 | 50-60 | 55-80 | 55-80 | 55-80 | 55-80 |
| Productivity(mu/hr) | 1-3 | 3-5 | 5-8 | 8-15 | ||
| Total weight(Kg) | 180 | 100 | 160 | 700 | 800 | 1200 |
| Matching power(HP) | 22-35 | 8-15 | 22-35 | 50-80 | 50-80 | 70-120 |
| Working depth(cm) | 25 | 20 | 25 | 25 | 25 | 25 |
| Working width(m) | 0.65 | 0.60 | 0.60 | 1.65 | 1.65 | 1.65 |
| Potato-exposing rate(%) | ≥96 | |||||
| Breakage rate(%) | ≤2 | |||||
| REV of power take-off shaft(RPM) | 560/1250 | 1000 | 560/1250 | 560 | 560 | 560 |
| Overall dimension(cm) | 180*100*98 | 90*70*70 | 120*100*75 | 230*220*100 | 280*220*100 | 330*390*310 |
| Packing dimension(cm) | 165*85*45 | 85*70*65 | 150*90*70 | 220*190*45 | 220*190*45 | 260*220*100 |
