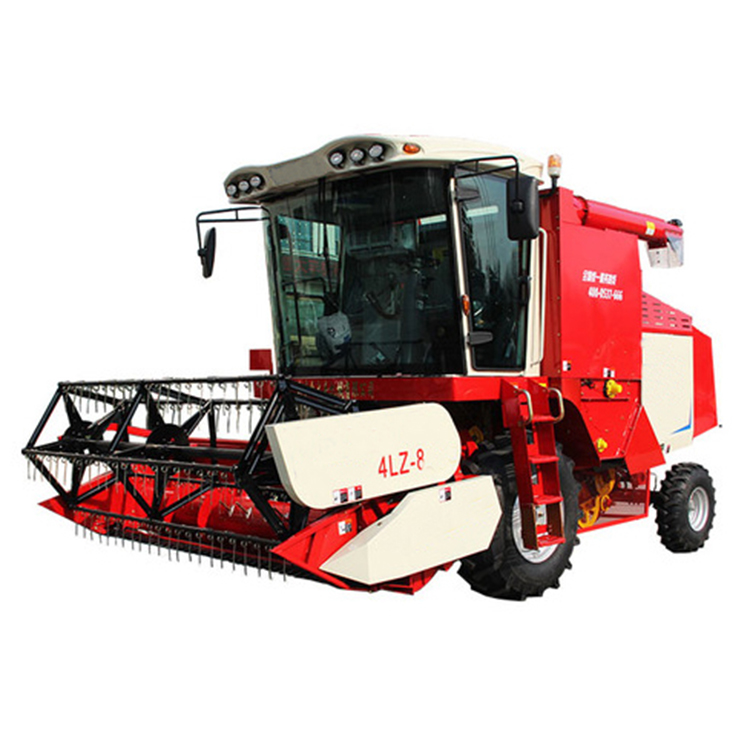

4LZ-8 Wheat Combine Harvester

Main features of 4LZ-8 Wheat Combine Harvester

Efficient operation
Powerful power: usually equipped with an engine of about 175 horsepower, such as Guangxi Yuchai's YC4A175-T300 engine, with a large torque reserve coefficient and stable power output, which can meet the needs of long-term and high-intensity harvesting operations. At the same time, the fuel consumption rate is low, energy-saving and environmentally friendly.

4LZ-8 Wheat Combine Harvester

1. Commercial terms

• Delivery Time: 14 days
• Payment term: irreversible L/C at sight, T/T
• EXW Price: RMB 142,000.00
• Optional: A/C, +RMB2,200.00
• Optional: 5 Rows Corn Picker head and Corn combine accessory, + RMB 44,800.00for corn combine also
• Loading: Roll-on and roll-off
• Warranty: 1 Year (not including quick-wear parts)

Large feed volume: The feed volume can reach 8kg/s. With the appropriate header width, it can achieve a higher harvesting efficiency, can harvest more wheat per unit time, and improve the progress of the operation.
Good cleaning effect: It adopts a wind screen cleaning mechanism with a large cleaning area. For example, the cleaning area of ​​Zoomlion TB80B (4LZ-8B1) reaches 2.4㎡, which can effectively remove impurities and chaff in wheat grains to ensure the quality of harvested wheat.
Fast grain unloading speed: The inner diameter of the grain unloading barrel is increased. For example, the inner diameter of the grain unloading barrel of Zoomlion TB80B (4LZ-8B1) is increased to 264mm, and the grain unloading efficiency is increased by about 20%. It can quickly unload the wheat in the grain box, reduce the unloading time, and improve the working efficiency.
High reliability
Strengthening of key components: The strength of key components such as the lifting bridge driving shaft, bridge chain rake, first and second distribution augers is improved, and the transmission chain is changed from single row to double row, which enhances the load-bearing capacity and reduces the probability of failure.
Bearing upgrade: The key parts of the bearing adopt Peel maintenance-free bearings, which are not only easy to maintain, but also improve the reliability of the entire machine and reduce the downtime caused by bearing failure.
Structural optimization: The volute is connected to the frame by adding a connecting rod, and the grain augers shaft, drive shaft, intermediate shaft, etc. are strengthened, which improves the strength of the intermediate shaft of the header, making the whole machine structure more stable and the operation more reliable.
Comfortable operation
Sealed cab: Optimize the sealing performance of the cab, effectively prevent dust, reduce shock and noise, provide a comfortable operating environment for the driver, and reduce fatigue from long-term operation.
Smart terminal: Equipped with an IoT smart terminal, it has functions such as operation monitoring, intelligent diagnosis, and whole machine positioning, which is convenient for the driver to understand the operating status of the machine in real time, and also convenient for after-sales service personnel to conduct remote fault diagnosis and maintenance, improving the convenience of operation and management efficiency.
Humanized design: Some models have also added facilities such as on-board hand washing water tanks, which reflects the humanized design concept and provides more convenience for drivers.
One machine for multiple uses
Combined threshing drum: The combined threshing drum is adopted, and the threshing separation is more thorough. The reinforced assembled threshing chamber concave plate can realize the harvest of various crops such as corn kernels, millet, and soybeans by replacing special accessories, which improves the versatility and utilization of the machine and creates more value for users.
