Product Details

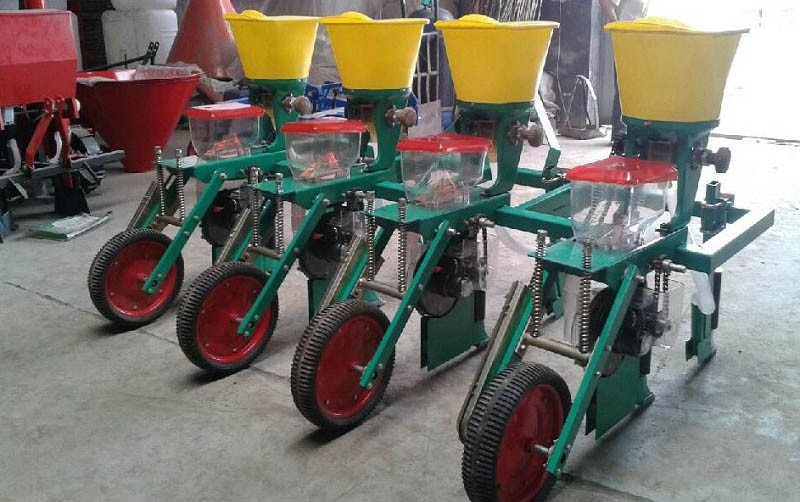

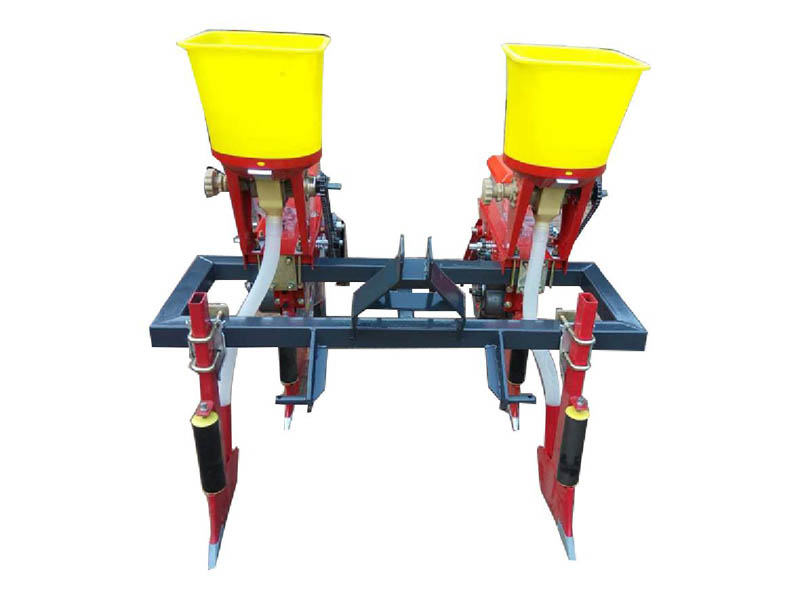

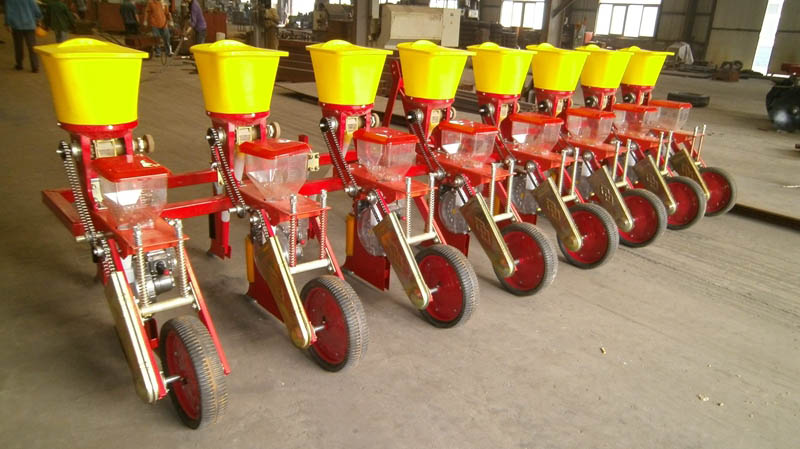

2BYSF SERIES OF PRECISION CORN FERTILIZATION SEEDER
This series of corn fertilization seeder can be mounted with 15-100hp tractors.It is applicable to the plains and hilly areas of maize seed and fertilizer. It has advantages of favorable universality, wide range of applying , even seeding and so on.
| Model | Unit | 2BYSF-2 | 2BYSF-3 | 2BYSF-4 | 2BYSF-5 | 2BYSF-6 |
| Overall dimension | Mm | 1440*1150*980 | 1440*1500*980 | 1440*1950*980 | 1440*2250*980 | 1440*2600*980 |
| Rows | Row | 2 | 3 | 4 | 5 | 6 |
| Row spacing | Mm | 428-630 | 428-600 | 428-570 | 428-540 | 428-510 |
| Plant spacing | Mm | 140/173/226/280 | ||||
| Ditching depth | Mm | 60-80 | ||||
| Fertilization depth | Mm | 60-80 | ||||
| Sowing depth | Mm | 30-50 | ||||
| Capacity of fertilizer tank | L | 42 | 68 | 86 | 86 | 86 |
| Capacity of ssed box | L | 8.5*2 | 8.5*3 | 8.5*4 | 8.5*5 | 8.5*6 |
| Weight | Kg | 140 | 190 | 270 | 300 | 350 |
| Linkage | Three-pointed mounted | |||||
| Matched power | hp | 12-18 | 15-25 | 25-40 | 40-50 | 50-60 |
